4520V

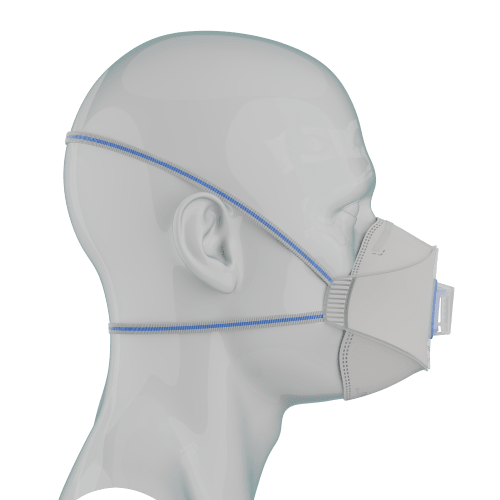

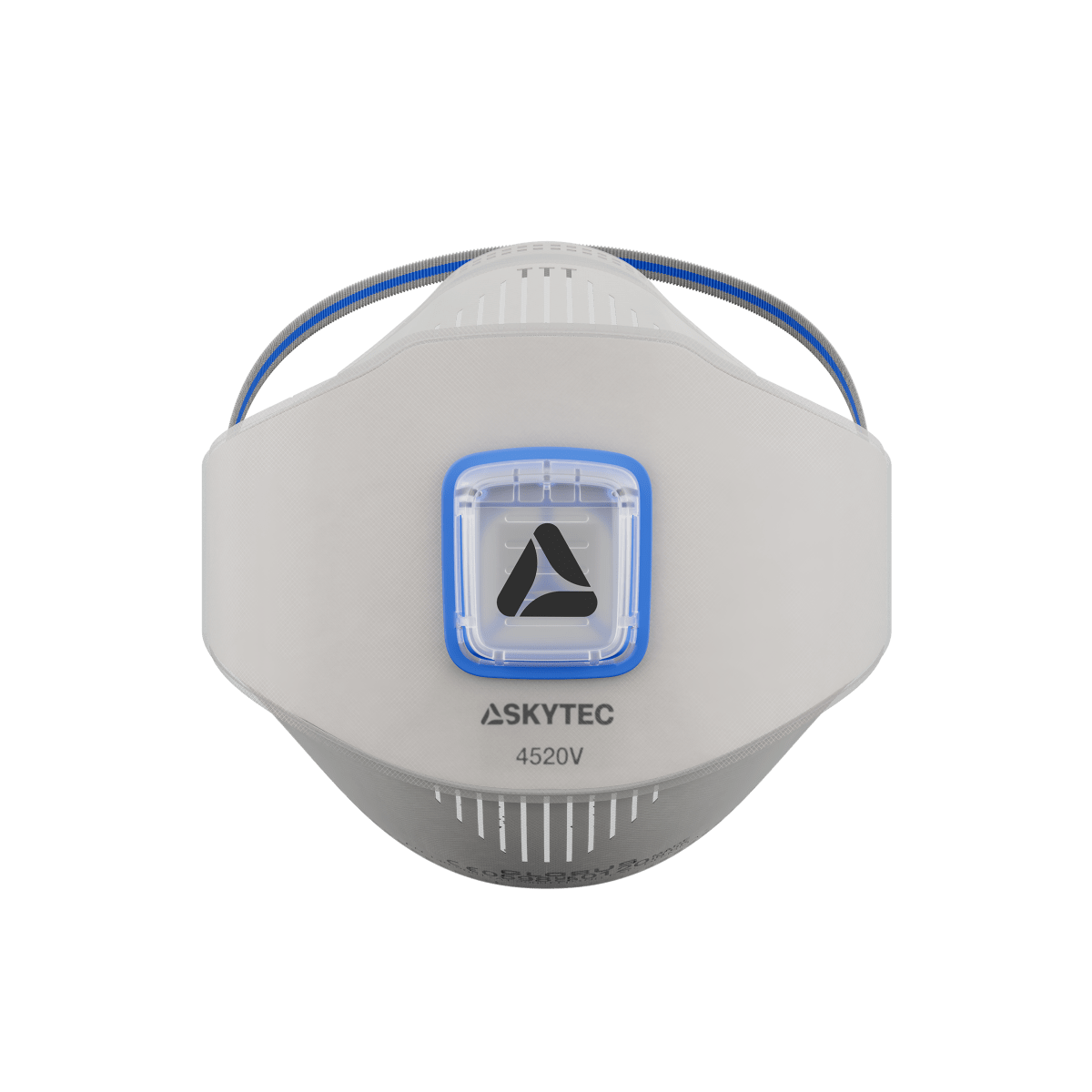

Disposable 3-Panel Fold Flat Respirator - FFP2V
Product Features
- Premium disposable fold flat respirator for easy storage, donning and doffing
- Secure, metal-free harness system with colour coded textile elastic for easy identification of FFP level
- Soft, flexible and adjustable nose bridge for increased fit factor and comfort
- Multilayer electrostatic filter media for high-performing filtration with low breathing resistance
- Full-width internal faceseal, made from soft touch PVC for high comfort
- Ergonomic design for a secure fit on a wide range of face shapes
- High flow exhalation valve for low breathing resistance, colour-coded for easy identification of FFP level
- Contoured noseseal for high compatibility with other types of PPE
Certifications
CAT III
Further Information
The 4500 Series is the newest addition to Skytec’s range of premium respirators. Featuring premium European-Made filter media across valved and unvalved variants, the 4500 Series range provides low breathing resistance and excellent Face Fit Factor.
Product Specifics
| Filter Media Material | Non-Woven Textile |
|---|---|
| Headstrap Material | Latex-Free Elastane, Polyester, Textile Elastic |
| Inner Cover Material | Polypropylene |
| Nosefoam Material | Polyethylene Foam |
| Outer Cover Material | Polypropylene |
| Series | 4500 |
Storage Conditions
| Humidity | <70% |
|---|---|
| Maximum Temperature | 35°C |
| Minimum Temperature | -5°C |
Certifications
| CE | ✓ |
|---|---|
| Cat Level | III |
| EN 149:2001 + A1:2009 | FFP2 NR |
EN 149:2001
| Class | FFP2 |
|---|---|
| Disposable | ✓ |
Selected Option Specifics
| SKU | ASRAPL200AZ |
|---|---|
| Size | One-Size |
| Main Colour | White |
| Shelf Life | 5Years |
Ordering information
| Items per Pack | 10 |
|---|---|
| Case Quantity | 120 |
| Packs Per Case | 12 |
| Units per Pallet | 2400 |
Packaging
| Unit Height | 20mm |
|---|---|
| Unit Length | 250mm |
| Unit Width | 90mm |
| Pack height | 26cm |
| Pack length | 18cm |
| Pack width | 10.5cm |
| Weight | 16g |
| Pack weight | 0.22kg |
| Case height | 36.9cm |
| Case length | 52.4cm |
| Case width | 33cm |
| Case weight | 3.61kg |
Product Selector Guidance Chart
| Option | Assigned Protection (APF) | Oil/Water Based Particulates | Non-Toxic Dusts | Fine Toxic Dusts/Mists/Fumes | Very Fine Toxic Dusts/Mists/Fumes | Metal Fume |
|---|---|---|---|---|---|---|
| ASRAPL200AZ | 10 | Recommended | Recommended | Recommended |
Parts Dimensions
| Part | Width | Length | Height |
|---|---|---|---|
| Respirator | 85 mm | 210 mm | 20 mm |
Recommendations for Use
USER INSTRUCTIONS:
Use only in accordance with these instructions, as incorrect use could result in danger to
life or health. Fit according to instructions BEFORE entering the contaminated area.
Discard safely after use or replace with a new respirator if:
• Excessive clogging of the respirator causes breathing difficulty or discomfort
• If the respirator becomes damaged
• The respirator has been worn for 8 hours.
Do not use in oxygen deficient, (less than 19%), explosive atmospheres or confined
spaces where gases or aerosols may accumulate and the concentration of contaminant
is immediately dangerous to life or health, (over the IDLH value).
Leave the contaminated area if:
• The respirator is damaged
• You become dizzy or have difficulty breathing
• You become irritated or other distress occurs
• You become uncertain of the nature and/or concentration of contaminant.
WARNING:
• As facial hair reduces the protection offered it is recommended that these respirators
are used by clean shaven personnel only
• Do not use for protection against gases
• Single shift use only
• Do not remove whilst in contaminated area.
