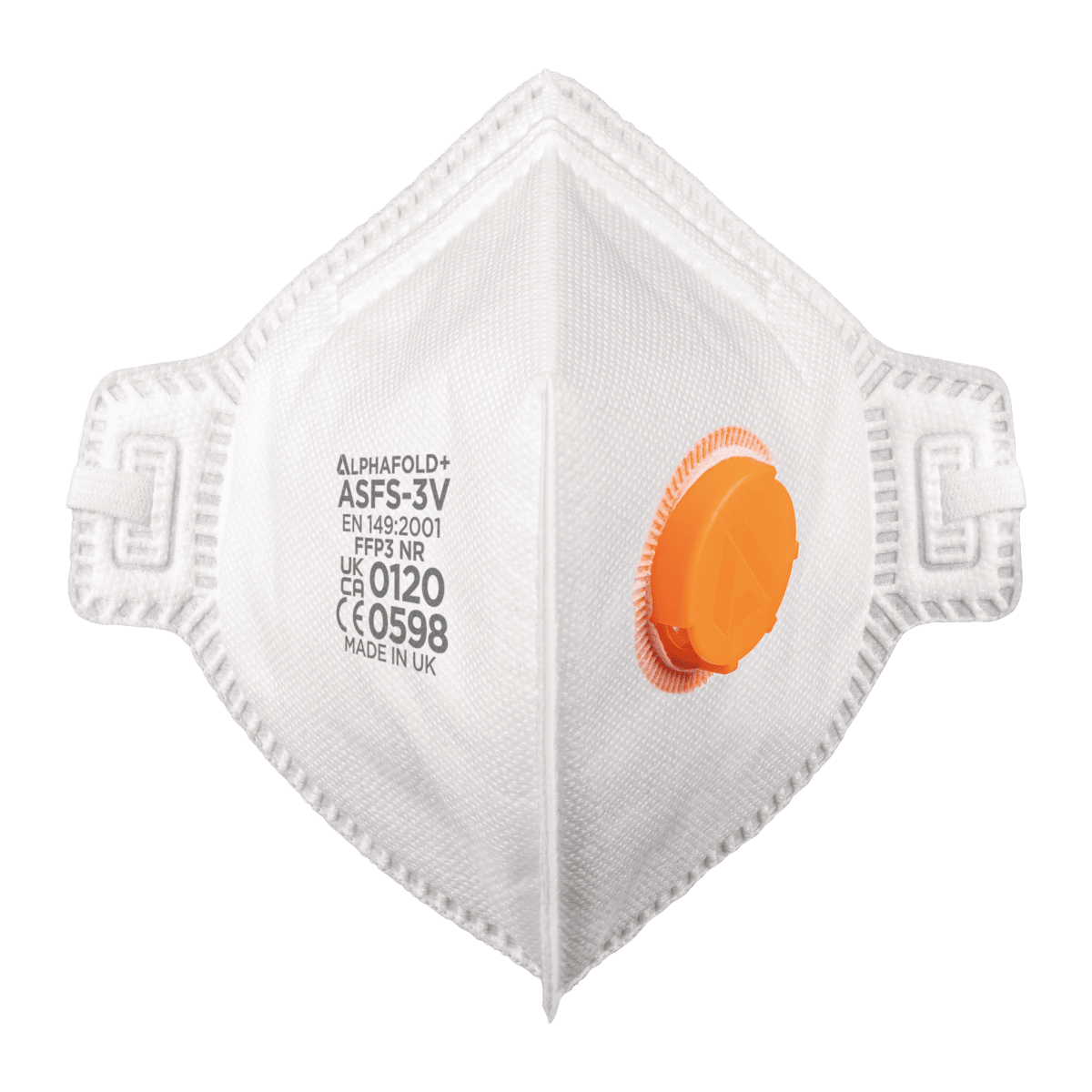

ASF-3V

FFP3 Vertical Fold-Flat Respirator (Valved)


Product Features

  • Lightweight, fold-flat respirator
  • Flexible nose bridge
  • Inner seal around the nose area for an effective fit
  • Electrostatic filter media
  • Conforms to EN 149:2001+A1:2009 FFP3 NR
  • Available in two size options, (regular - AFS and small - ASFS). Ideal to fit a wide range of face shapes
  • Adjustable loop-through straps
  • Latex Free

Certifications

CE
CAT III





Further Information

The AlphaFold+ is a vertical fold flat disposable respirator designed with an inner face seal, adjustable straps and two size options to offer an excellent fit for all face shapes.

Available Options

Product Code Size Colour Width Length Height Weight
ASRASF301AF M White 130 mm 140 mm 220 mm 27 g
ASRASF301AD S White 130 mm 140 mm 220 mm 26 g

Product Specifics

Filter Media MaterialNon-Woven Textile
Headstrap MaterialLatex-Free Elastane, Polyester, Textile Elastic
Inner Cover MaterialPolypropylene
Nosefoam MaterialPolyethylene Foam
Outer Cover MaterialPolypropylene
SeriesAlphafold+

Storage Conditions

Humidity<70%
Maximum Temperature35°C
Minimum Temperature-5°C

Certifications

CE
Cat LevelIII
EN 149:2001 + A1:2009FFP3 NR

EN 149:2001

Class FFP3
Disposable

Options

Selected Option Specifics

SKUASRASF301AF
SizeM
Main ColourWhite
Secondary ColourOrange
Shelf Life5Years
SKUASRASF301AD
SizeS
Main ColourWhite
Secondary ColourOrange
Shelf Life5Years

Ordering information

Items per Pack15
Case Quantity180
Packs Per Case12
Units per Pallet4320
Items per Pack15
Case Quantity180
Packs Per Case12
Units per Pallet4320

Packaging

Unit Height220mm
Unit Length140mm
Unit Width130mm
Pack height22cm
Pack length14cm
Pack width13cm
Weight27g
Pack weight0.28kg
Case height44cm
Case length54cm
Case width25cm
Case weight3.15kg
Unit Height220mm
Unit Length140mm
Unit Width130mm
Pack height22cm
Pack length14cm
Pack width13cm
Weight26g
Pack weight0.27kg
Case height44cm
Case length54cm
Case width24cm
Case weight3.8kg

Product Selector Guidance Chart

OptionAssigned Protection (APF)Oil/Water Based ParticulatesNon-Toxic DustsFine Toxic Dusts/Mists/FumesVery Fine Toxic Dusts/Mists/FumesMetal Fume
ASRASF301AF20RecommendedAlternativeAlternativeRecommendedRecommended
ASRASF301AD20RecommendedAlternativeAlternativeRecommendedRecommended

Parts Dimensions

PartWidthLengthHeight
Respirator125 mm160 mm10 mm
PartWidthLengthHeight
Respirator120 mm155 mm10 mm
Recommendations for Use
USER INSTRUCTIONS: Use only in accordance with these instructions, as incorrect use could result in danger to life or health. Fit according to instructions BEFORE entering the contaminated area. Discard safely after use or replace with a new respirator if: • Excessive clogging of the respirator causes breathing difficulty or discomfort • If the respirator becomes damaged • The respirator has been worn for 8 hours. Do not use in oxygen deficient, (less than 19%), explosive atmospheres or confined spaces where gases or aerosols may accumulate and the concentration of contaminant is immediately dangerous to life or health, (over the IDLH value). Leave the contaminated area if: • The respirator is damaged • You become dizzy or have difficulty breathing • You become irritated or other distress occurs • You become uncertain of the nature and/or concentration of contaminant. WARNING: • As facial hair reduces the protection offered it is recommended that these respirators are used by clean shaven personnel only • Do not use for protection against gases • Single shift use only • Do not remove whilst in contaminated area.
Recommendations for Use
USER INSTRUCTIONS: Use only in accordance with these instructions, as incorrect use could result in danger to life or health. Fit according to instructions BEFORE entering the contaminated area. Discard safely after use or replace with a new respirator if: • Excessive clogging of the respirator causes breathing difficulty or discomfort • If the respirator becomes damaged • The respirator has been worn for 8 hours. Do not use in oxygen deficient, (less than 19%), explosive atmospheres or confined spaces where gases or aerosols may accumulate and the concentration of contaminant is immediately dangerous to life or health, (over the IDLH value). Leave the contaminated area if: • The respirator is damaged • You become dizzy or have difficulty breathing • You become irritated or other distress occurs • You become uncertain of the nature and/or concentration of contaminant. WARNING: • As facial hair reduces the protection offered it is recommended that these respirators are used by clean shaven personnel only • Do not use for protection against gases • Single shift use only • Do not remove whilst in contaminated area.
