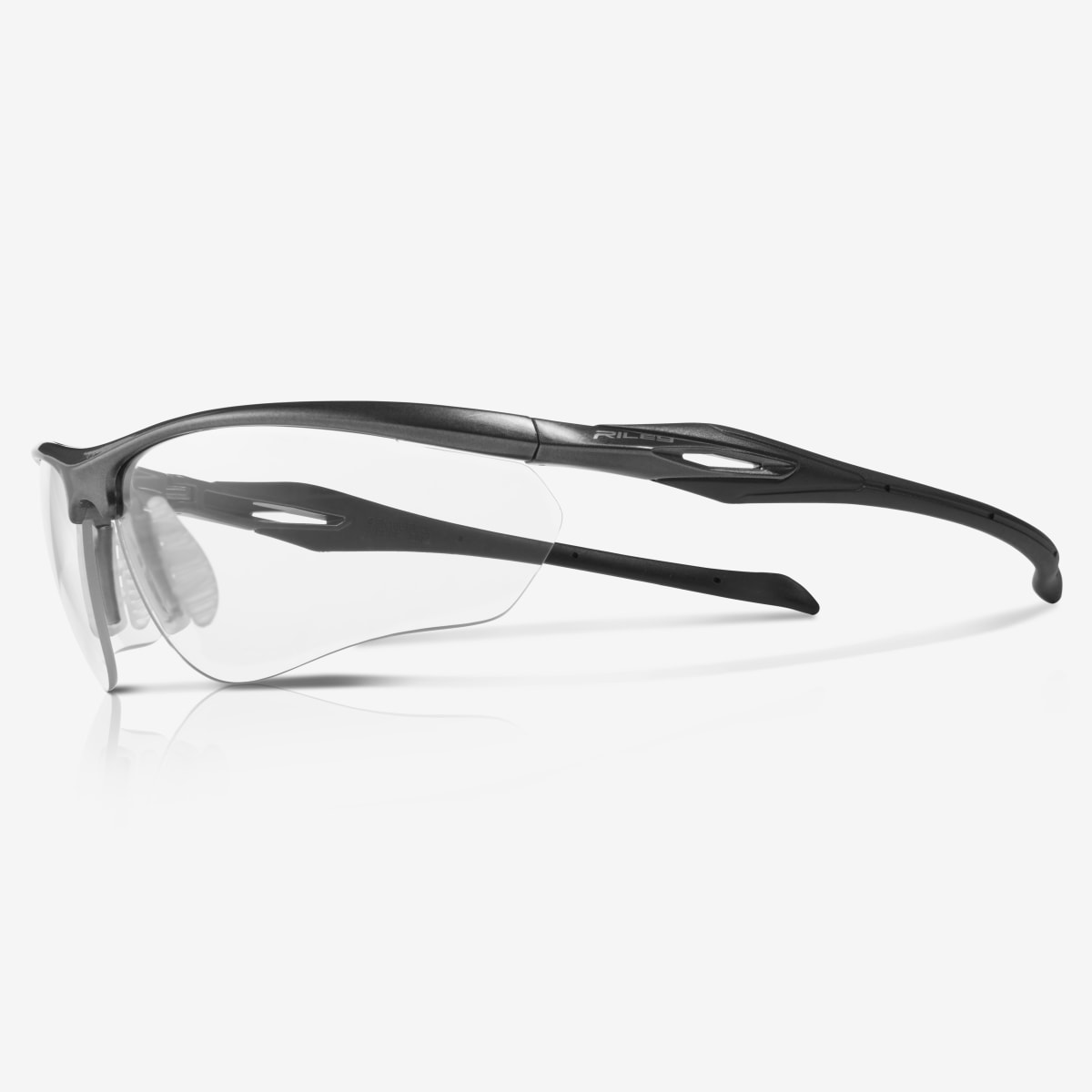

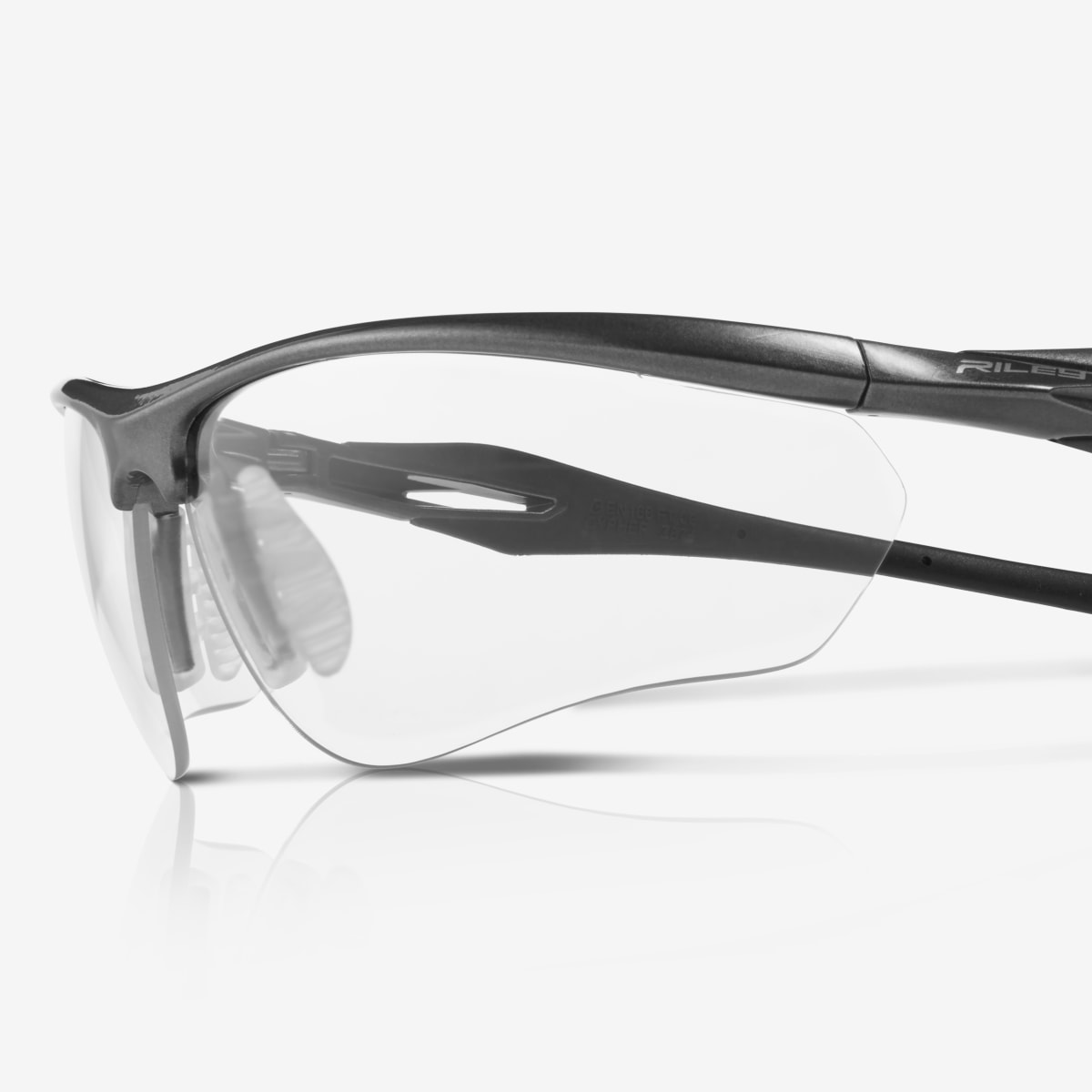

Riley Cypher

Safety Eyewear with a Sleek Streamlined Design & Multiple Lens Variants

Product Features

Sports style 8 Base lens
Soft, adjustable anti-slip nose bridge
Co-injected bi-colour temples with flexible TPE ends enhance overall fit & comfort
Supplied with a microfibre storage pouch
Unique aero-slotted side arms

Certifications

Options

Lens Colour

Declaration of Conformity

Datasheet

User Information Sheet

Maritime Highways and Infrastructure

Component and Product Assembly Vehicle Repairs and Maintenance Commercial Cleaning General Maintenance Inspection and Quality Control

Features

Adjustable Nose Bridge Soft TPE Sports Style

Further Information

The new & exclusive Cypher is a sleek 8 base frame with soft co-injected temples for maximum comfort. A truly innovative design offering maximum protection & functionality to the wearer. Available in multiple Riley lens colours & coatings including Tecton & Arida for protection from scratches & to combat fogging.

Available Options

Lens Type	Product Code	Lens Marking	Frame Marking	Protects Against	Coatings
Clear	RLY00500	2C-1.2 1 FT K N CE Z87+ U6 S X IO 0	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933	Impacts UV Radiation	Tecton 400 UV400 Moisture Repellent
Grey	RLY00501	5-2.5 1 FT K N CE Z87+ U6 L2.5 X I 2	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933	Impacts UV Radiation Solar Radiation	Tecton 400 UV400 Moisture Repellent
Twilight	RLY00503	5-1.7 1 FT CE Z87+ U6 L1.7 X I 1	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933	Impacts UV Radiation	Arida 400 UV400 Moisture Repellent
Blue	RLY00502	2C-1.4 1 FT K N CE Z87+ U6 S X I 1	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933	Impacts UV Radiation	Tecton 400 UV400 Moisture Repellent
Antique Mirror/Revo	RLY00504	5-2.5 1 FT CE Z87+ U6 L2.5 S X I 2	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933	Impacts UV Radiation	Arida 400 UV400 Moisture Repellent
Polarised	RLY00505	5-3.1 1 FT CE Z87+ U6 L3 S X I 3	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933	Impacts UV Radiation Solar Radiation	Arida 400 UV400 Moisture Repellent
LED	RLY00506	2C-1.4 1 FT K N CE Z87+ U6 L1.3 X I 1	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933	Impacts UV Radiation	Tecton 400 UV400 Moisture Repellent

Product Specifics

Frame material	Polycarbonate
Frame Type	Half Frame
Hinge Material	Metal
Nosebridge Material	Thermoplastic Elastomers (TPE)
Series	Cypher
Temple Material	Polycarbonate, Thermoplastic Elastomers (TPE)

Certifications

CE	✓
EN 166	✓
ANSI Z87.1	✓
AS/NZS 1337.1:2010	✓

Options

Selected Option Specifics

SKU	RLY00500
Main Colour	Black
Lens Coating	Tecton 400, UV400, Moisture Repellent
Frame Marking	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933
Lens Marking	2C-1.2 1 FT K N CE / Z87+ U6 S X / IO 0
Lens Colour	Clear
Protects Against	Impacts, UV Radiation
VLT (Visible Light Transmission)	92%

SKU	RLY00501
Main Colour	Black
Lens Coating	Tecton 400, UV400, Moisture Repellent
Frame Marking	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933
Lens Marking	5-2.5 1 FT K N CE / Z87+ U6 L2.5 X / I 2
Lens Colour	Grey
Protects Against	Impacts, UV Radiation, Solar Radiation
VLT (Visible Light Transmission)	14%

SKU	RLY00503
Main Colour	Black
Lens Coating	Arida 400, UV400, Moisture Repellent
Frame Marking	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933
Lens Marking	5-1.7 1 FT CE / Z87+ U6 L1.7 X / I 1
Lens Colour	Twilight
Protects Against	Impacts, UV Radiation
VLT (Visible Light Transmission)	55%

SKU	RLY00502
Main Colour	Black
Lens Coating	Tecton 400, UV400, Moisture Repellent
Frame Marking	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933
Lens Marking	2C-1.4 1 FT K N CE / Z87+ U6 S X / I 1
Lens Colour	Blue
Protects Against	Impacts, UV Radiation
VLT (Visible Light Transmission)	65%

SKU	RLY00504
Main Colour	Black
Lens Coating	Arida 400, UV400, Moisture Repellent
Frame Marking	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933
Lens Marking	5-2.5 1 FT CE / Z87+ U6 L2.5 S X / I 2
Lens Colour	Antique Mirror/Revo
Protects Against	Impacts, UV Radiation

SKU	RLY00505
Main Colour	Black
Lens Coating	Arida 400, UV400, Moisture Repellent
Frame Marking	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933
Lens Marking	5-3.1 1 FT CE / Z87+ U6 L3 S X / I 3
Lens Colour	Polarised
Protects Against	Impacts, UV Radiation, Solar Radiation
VLT (Visible Light Transmission)	12%

SKU	RLY00506
Main Colour	Black
Lens Coating	Tecton 400, UV400, Moisture Repellent
Frame Marking	EN166 FT CE UKCA Z87+ AS/NZS 1337.1 Lic. SMK40933
Lens Marking	2C-1.4 1 FT K N CE / Z87+ U6 L1.3 X / I 1
Lens Colour	LED
Protects Against	Impacts, UV Radiation
VLT (Visible Light Transmission)	71%

Ordering information

Items per Pack	10
Case Quantity	200
Packs Per Case	20
Units per Pallet	2400

Packaging

Pack height	11cm
Pack length	28cm
Pack width	18cm
Weight	22g
Pack weight	0.59kg
Case height	47cm
Case length	85cm
Case width	31cm
Case weight	11.7kg

Weight	22g
Pack weight	0.59kg
Case height	85cm
Case length	47cm
Case width	31cm
Case weight	11.7kg

Weight	22g
Case height	47cm
Case length	85cm
Case width	31cm
Case weight	8.2kg

Weight	22g
Case height	47cm
Case length	85cm
Case width	31cm
Case weight	10.6kg

Weight	22g
Case weight	10.6kg

EN 166:2001

SKU	Lens Colour	Filter	Tint	Optical Class	Mechanical Strength	Additional Markings	Frame Mechanical Strength
RLY00500	Clear	2CUV w/ colour	1.2Clear or Amber	1For Continuous Work	FLow-energy Impact TExtreme temperatures	KResistance to Scratching NResistance to Fogging	FLow-energy Impact TExtreme temperatures
RLY00501	Grey	5Solar filter	2.5Grey or Revo	1For Continuous Work	FLow-energy Impact TExtreme temperatures	KResistance to Scratching NResistance to Fogging	FLow-energy Impact TExtreme temperatures
RLY00503	Twilight	5Solar filter	1.7Minimises or I/O	1For Continuous Work	FLow-energy Impact TExtreme temperatures		FLow-energy Impact TExtreme temperatures
RLY00502	Blue	2CUV w/ colour	1.4Blue or I/O Waterproof	1For Continuous Work	FLow-energy Impact TExtreme temperatures	KResistance to Scratching NResistance to Fogging	FLow-energy Impact TExtreme temperatures
RLY00504	Antique Mirror/Revo	5Solar filter	2.5Grey or Revo	1For Continuous Work	FLow-energy Impact TExtreme temperatures		FLow-energy Impact TExtreme temperatures
RLY00505	Polarised	5Solar filter	3.1Dark Grey or Mirror	1For Continuous Work	FLow-energy Impact TExtreme temperatures		FLow-energy Impact TExtreme temperatures
RLY00506	LED	2CUV w/ colour	1.4Blue or I/O Waterproof	1For Continuous Work	FLow-energy Impact TExtreme temperatures	KResistance to Scratching NResistance to Fogging	FLow-energy Impact TExtreme temperatures

ANSI/ISEA Z87.1

SKU	Lens Colour	Impact Rating	UV Light Rating	Additional Markings
RLY00500	Clear	Z87+High Velocity Impact	U6	S\|X
RLY00501	Grey	Z87+High Velocity Impact	U6	XResistance to Fogging
RLY00503	Twilight	Z87+High Velocity Impact	U6	XResistance to Fogging
RLY00502	Blue	Z87+High Velocity Impact	U6	S\|X
RLY00504	Antique Mirror/Revo	Z87+High Velocity Impact	U6	S\|X
RLY00505	Polarised	Z87+High Velocity Impact	U6	S\|X
RLY00506	LED	Z87+High Velocity Impact	U6	XResistance to Fogging

Disposal

Pitted, scratched or damaged lenses must be replaced by replacing the complete product. If the frame is damaged also replace the complete product.

Cleaning

The lenses should be cleaned regularly.

Storage

All products must be stored in a dry and clean environment. After each use it is recommended to keep the spectacles or goggles in a microfibre pouch or rigid case.
