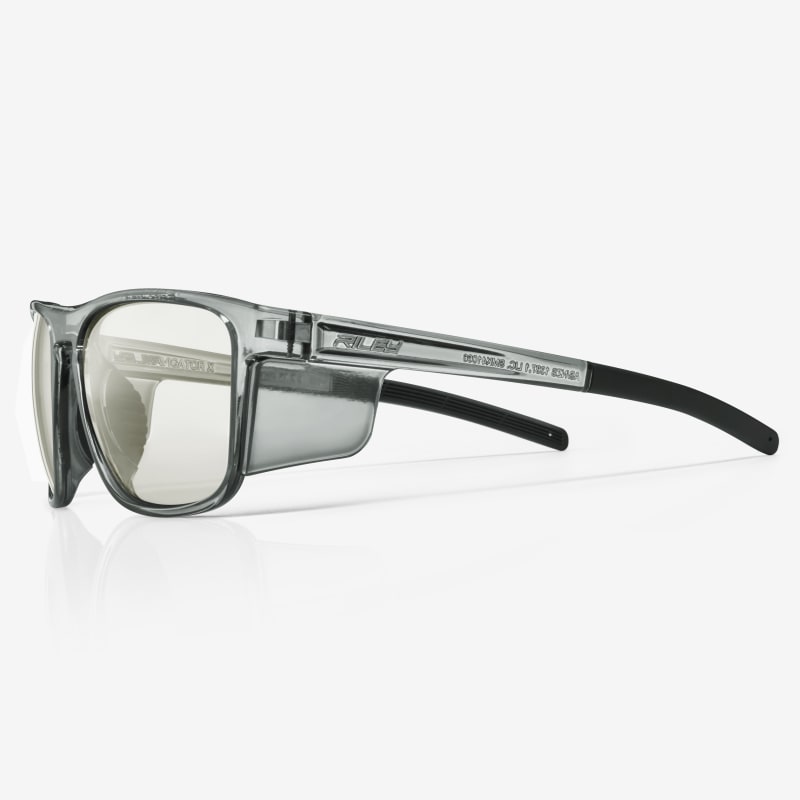

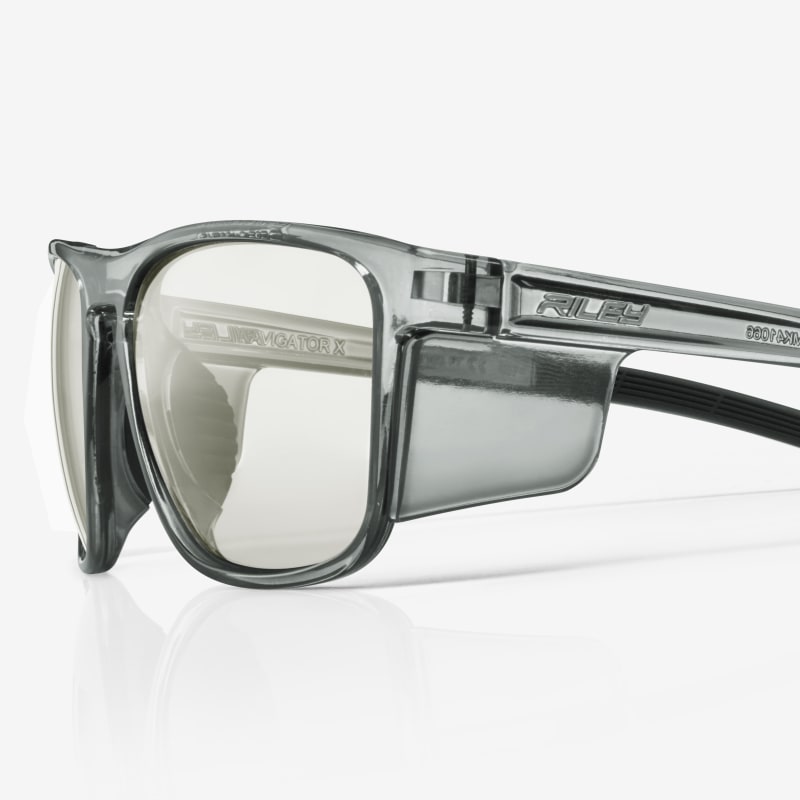

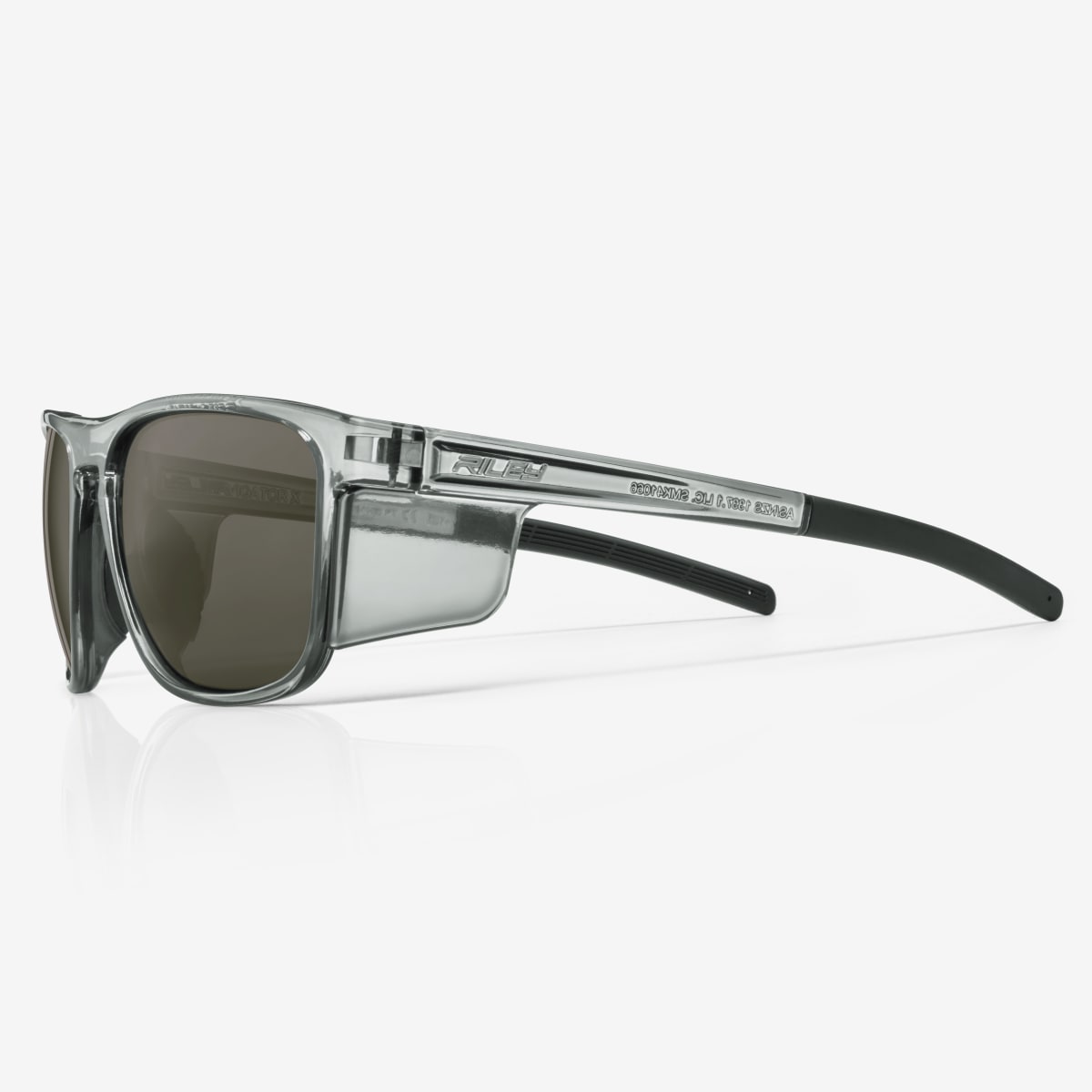

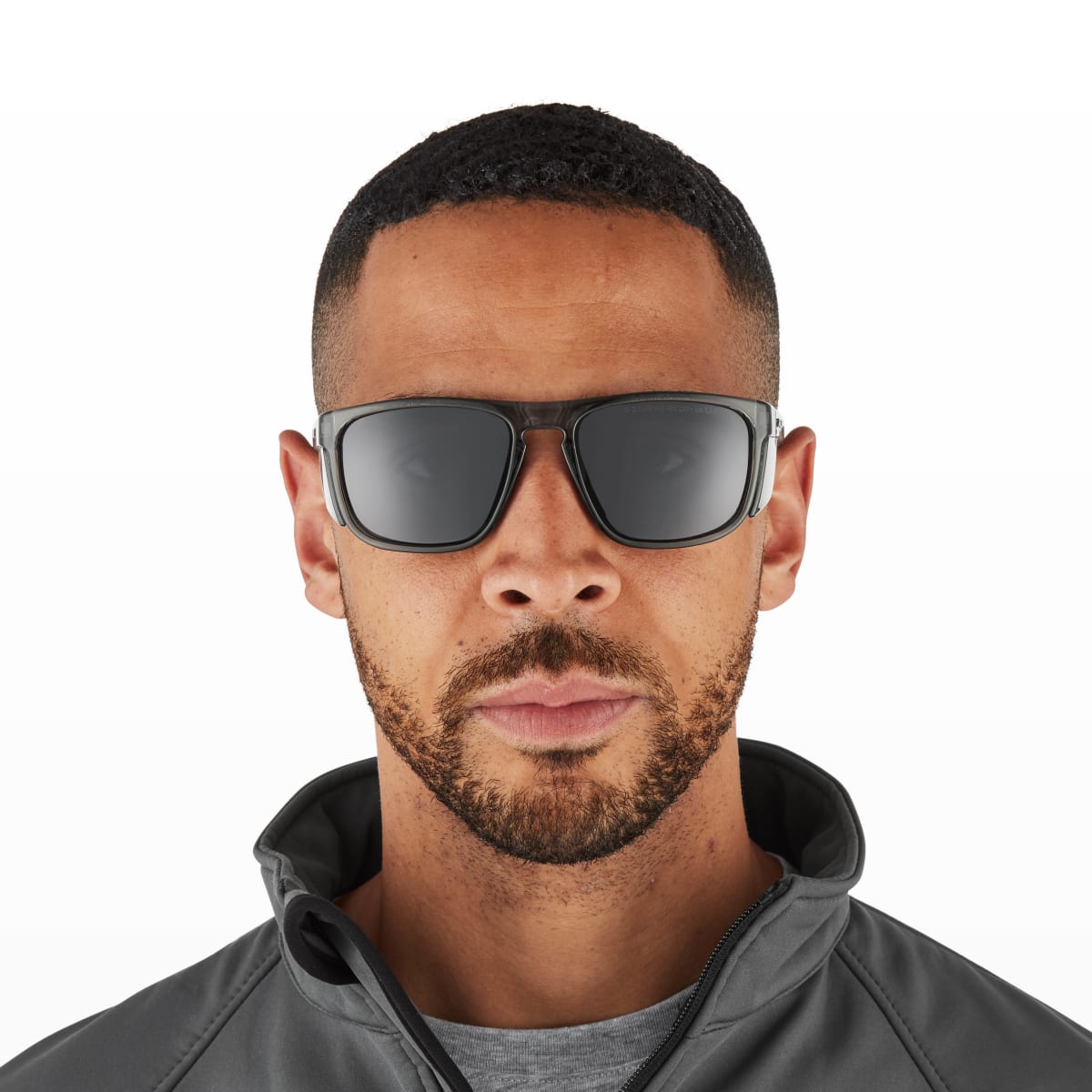

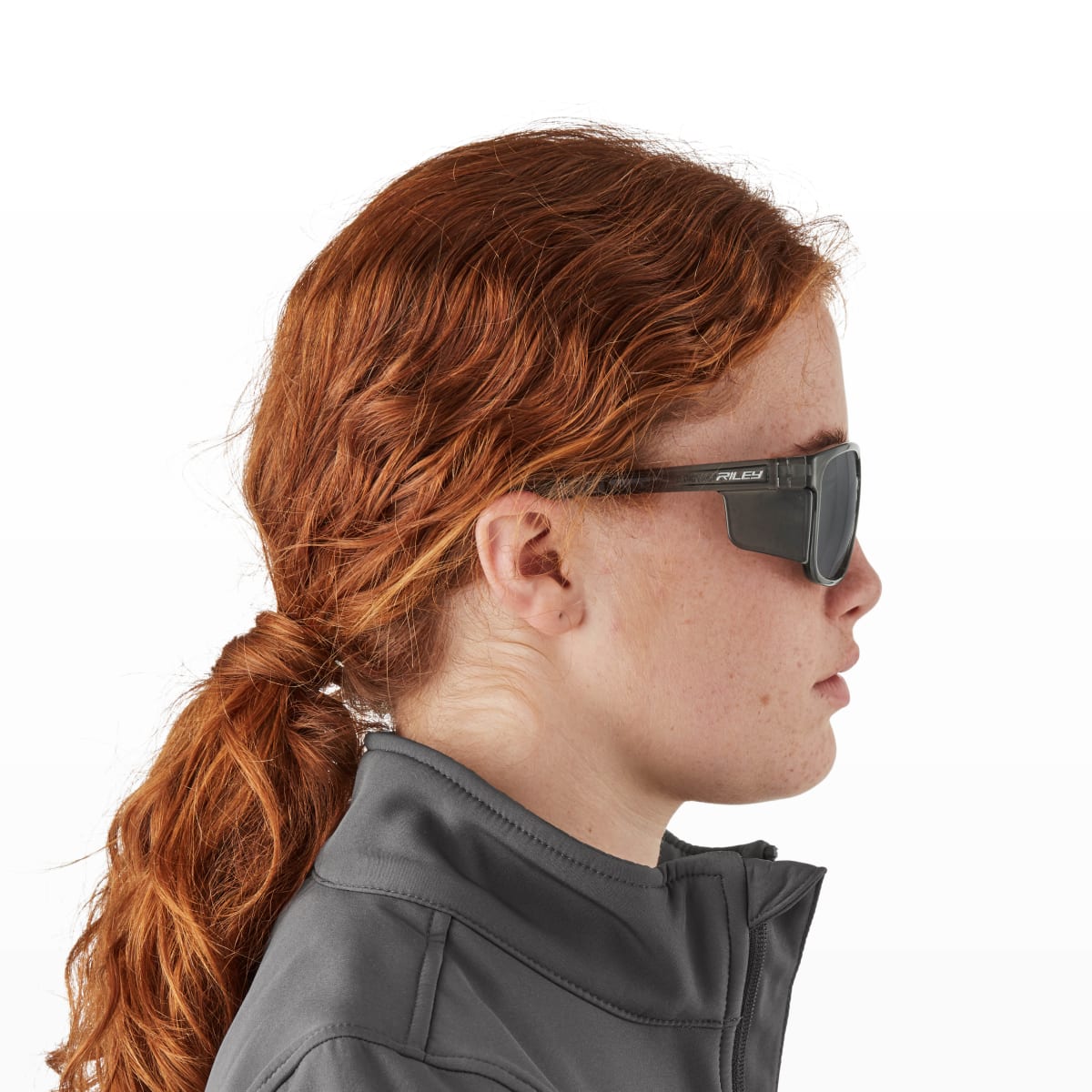

Navigator X

The Next Level For Style & Safety

Product Features

Tested to the highest standards, full protection without compromise on style or comfort.
Premium lens options available - Upgrade your vision to HD! Try the NEW HD Lens (Polarised, mirror and standard lenses also available)
Stylish and tapered design with the highest quality ECO Bio-based materials
All UV400 lenses are fully coated with a premium anti-fog and anti-scratch solution (KN standard EN166) including polarised and mirrored
Soft rubberised temple tips and nose piece remove the discomfort to pressure points on the head and face
Transparent frame & side shield for increased peripheral visibility

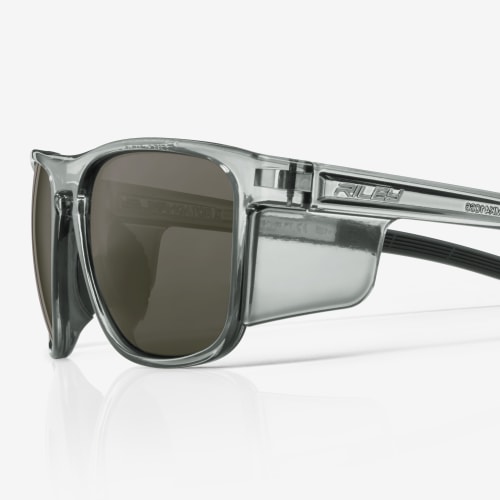

Fixed Side Shield reduces risk to side impacts
Also available in prescription

Options

Lens Colour

Declaration of Conformity

Datasheet

User Information Sheet

Features

Soft TPE Sports Style Ultra Lightweight

Further Information

Pushing the boundaries on style and innovation, the NEW Navigator X offers a protective eyewear solution without compromise. Featuring the iconic wayfarer design, high quality ECO materials and specialist lens options, the Nav X is the next level for style & safety.

Available Options

Lens Type	Product Code	Lens Marking	Frame Marking	Protects Against	Coatings

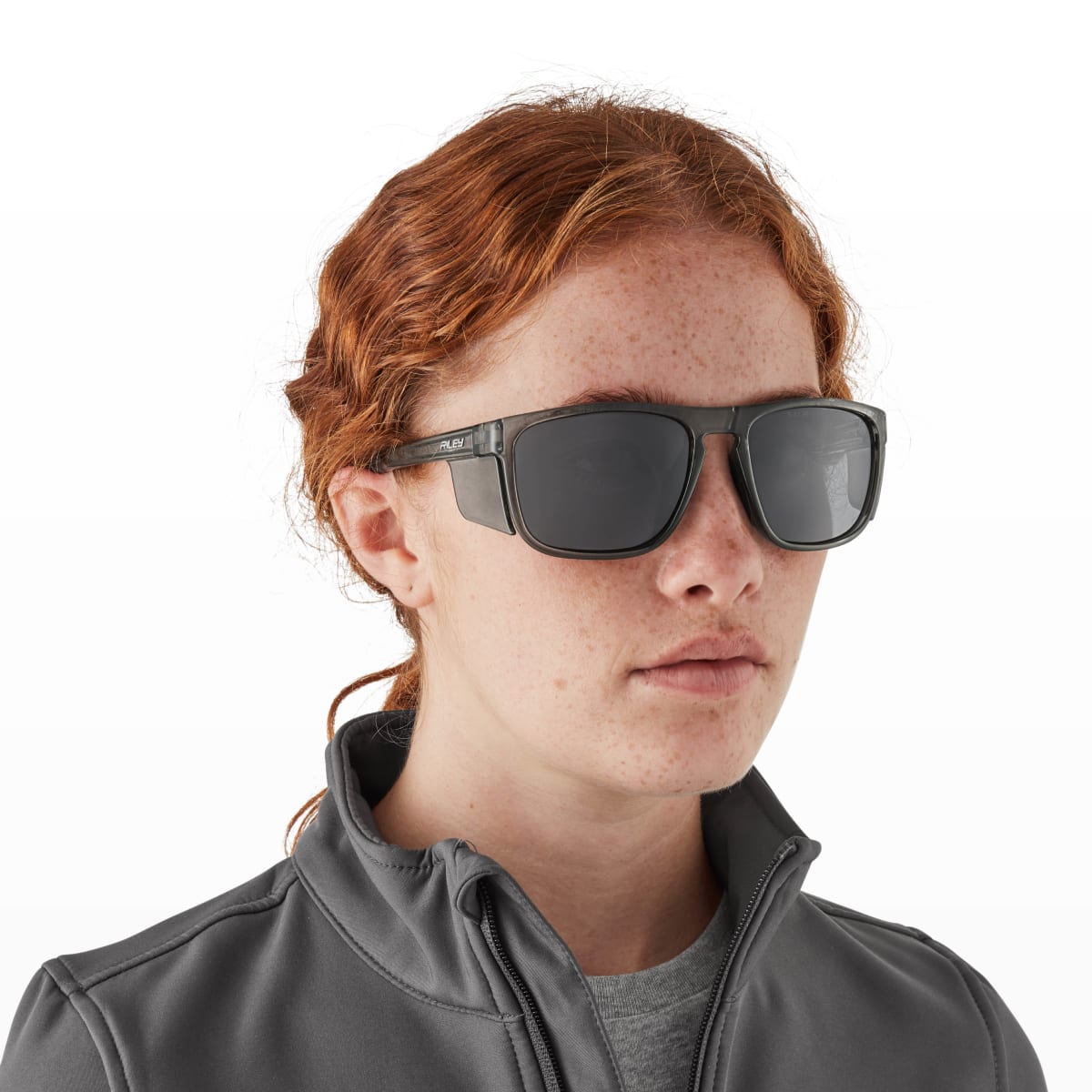

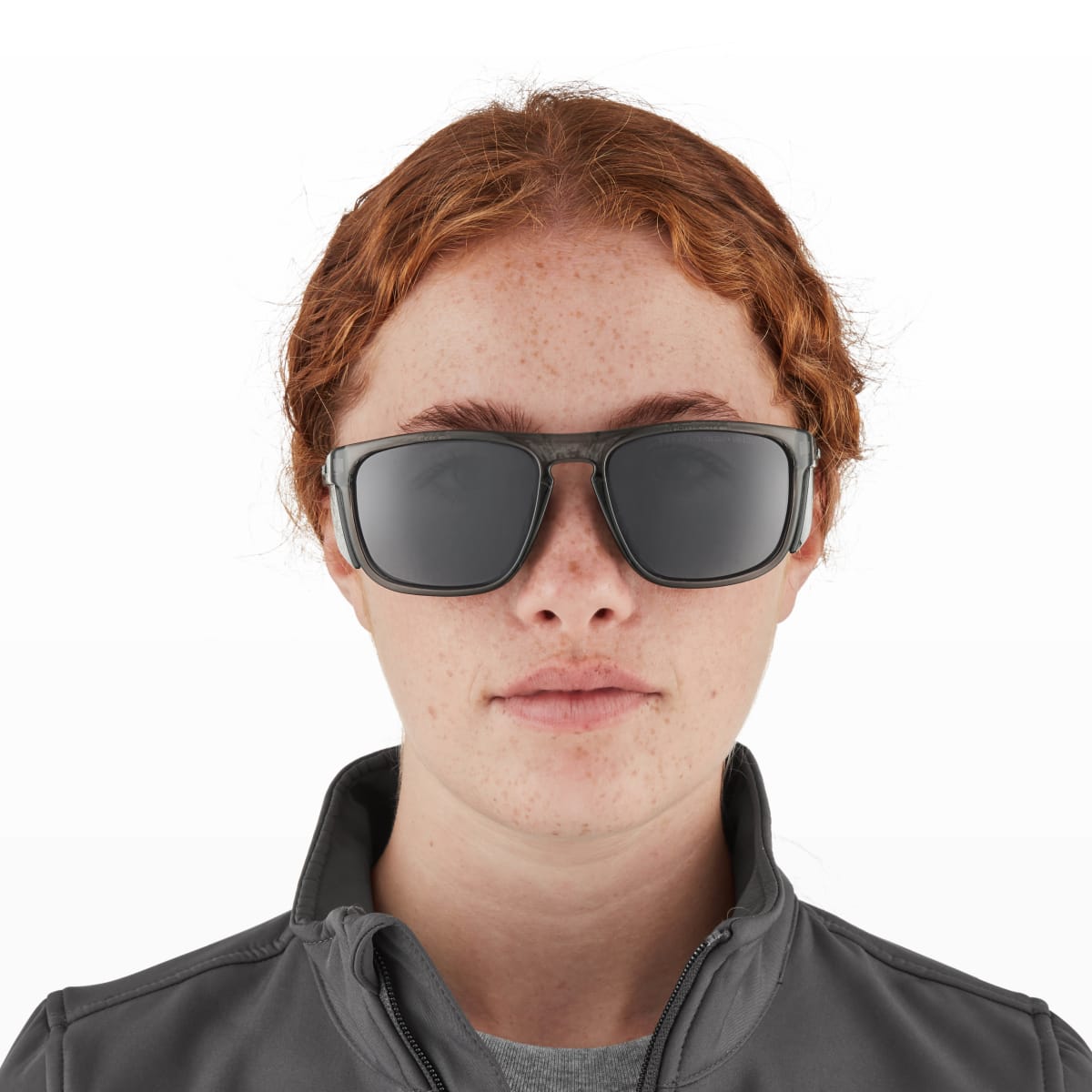

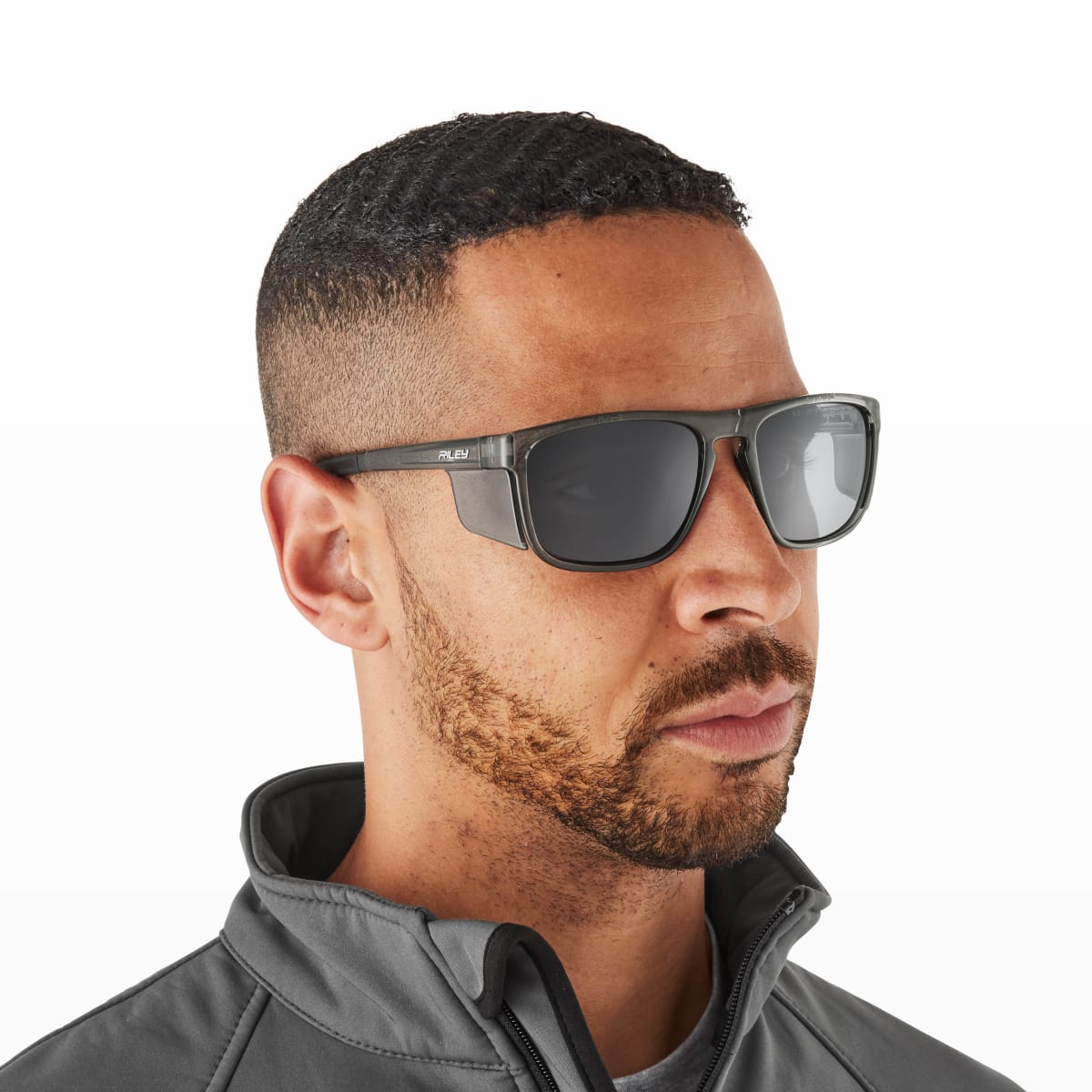

Polarised	RLY00602	5-3.1 1 FT CE Z87+ U6 L3 S I 3	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067	Impacts UV Radiation Solar Radiation	Moisture Repellent Tecton 400 UV400

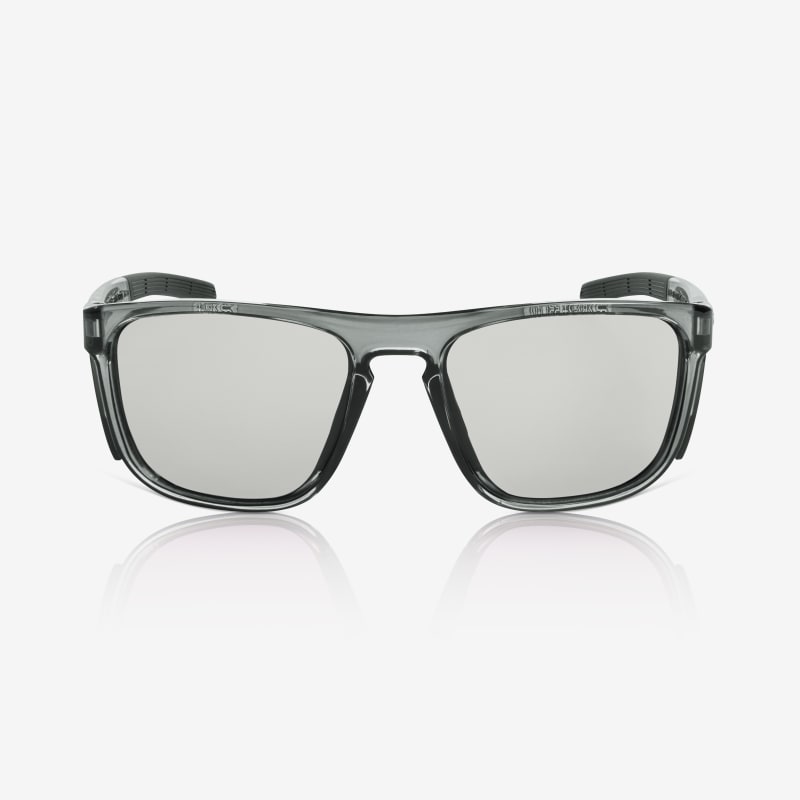

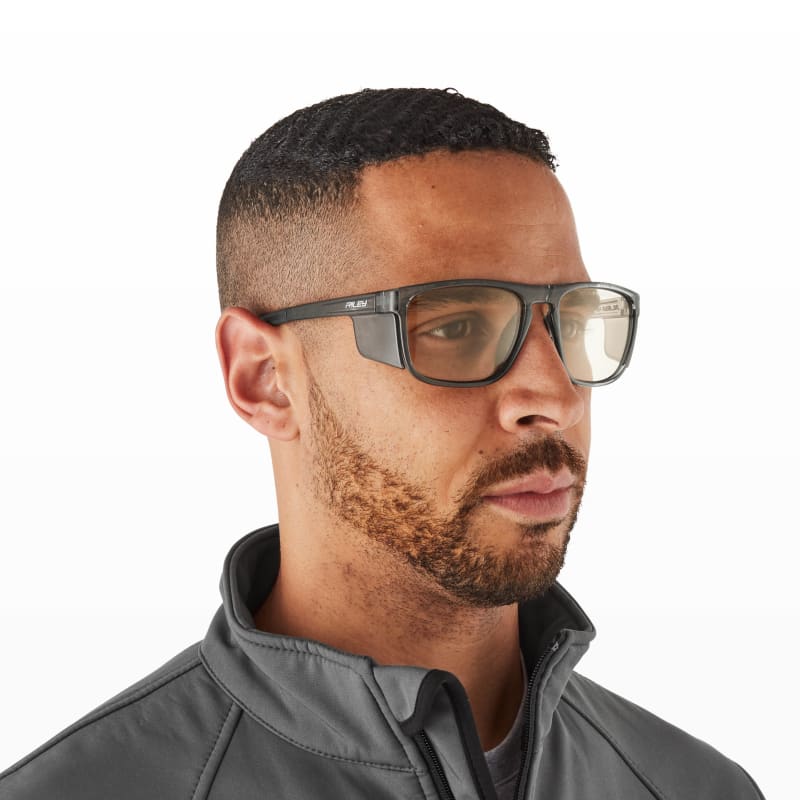

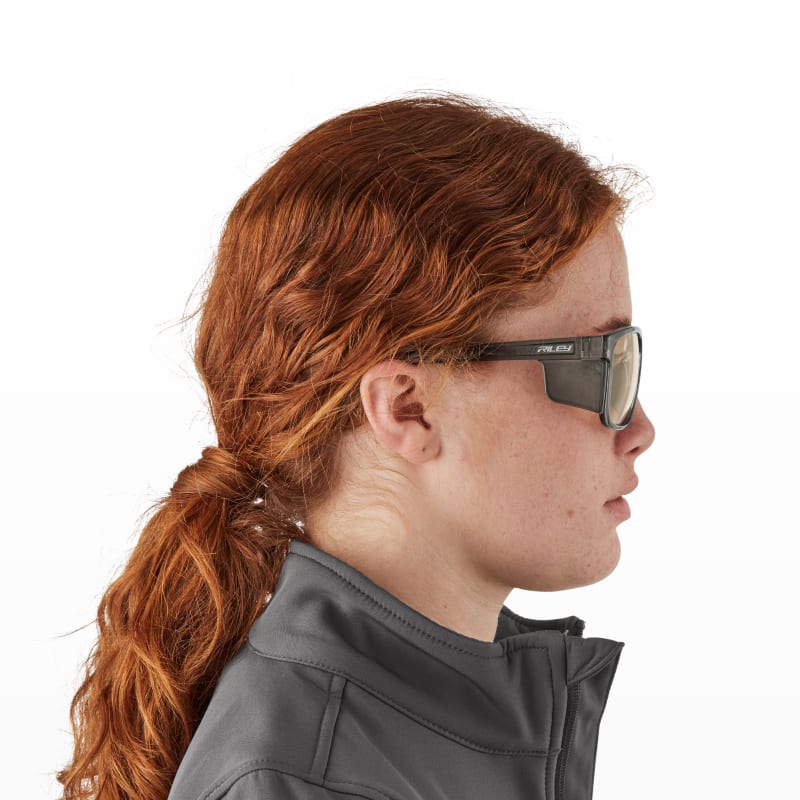

LED	RLY00601	2C-1.4 1 FT CE Z87+ U6 L1.3 I 1	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067	Impacts UV Radiation	Moisture Repellent Tecton 400 UV400

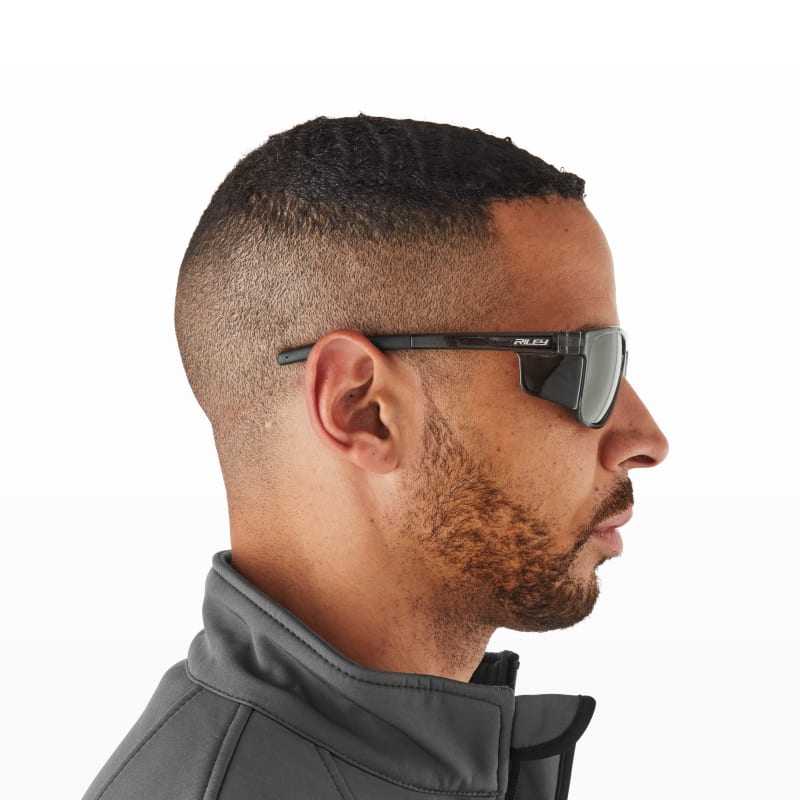

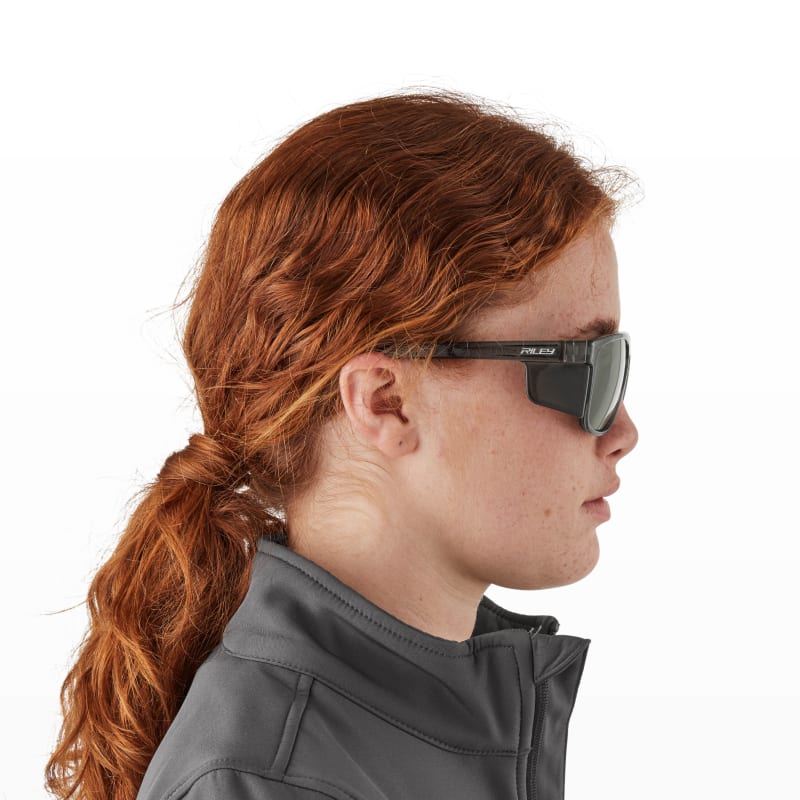

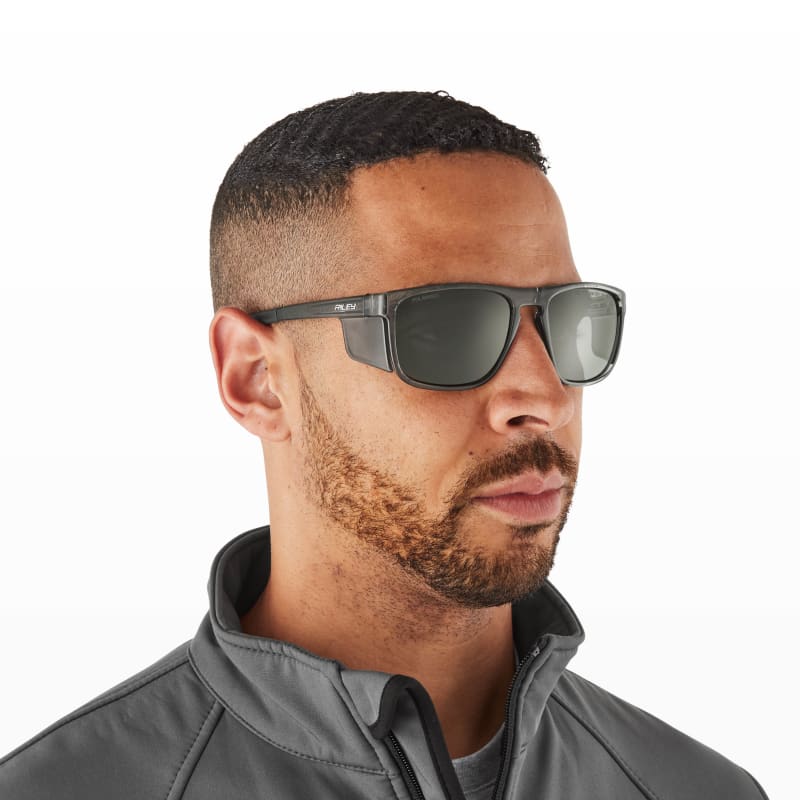

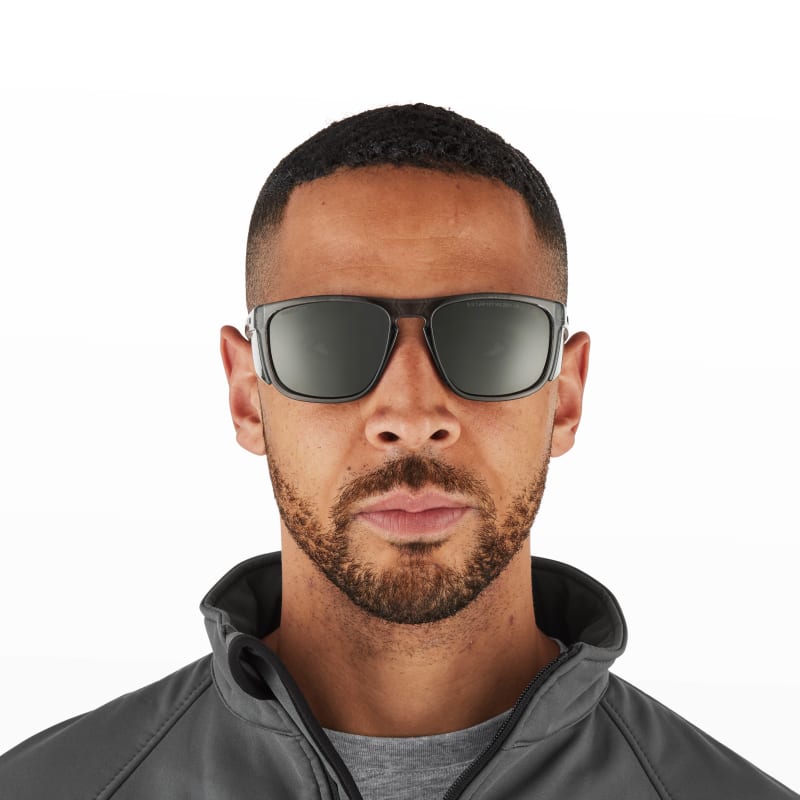

Grey	RLY00600	5-3.1 1 FT CE Z87+ U6 L3 I 3	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067	Impacts UV Radiation Solar Radiation	Moisture Repellent Tecton 400 UV400

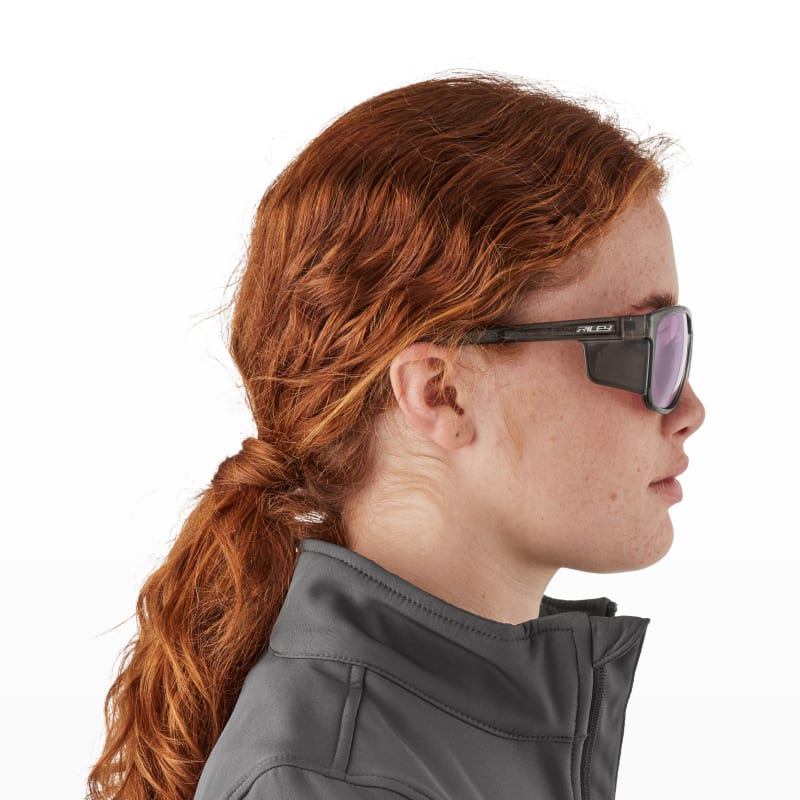

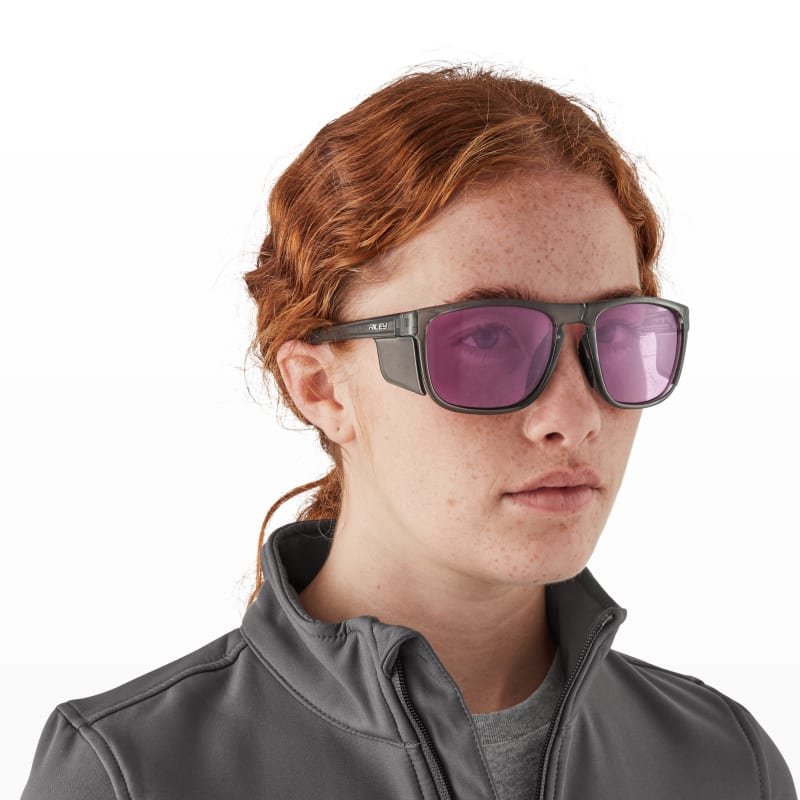

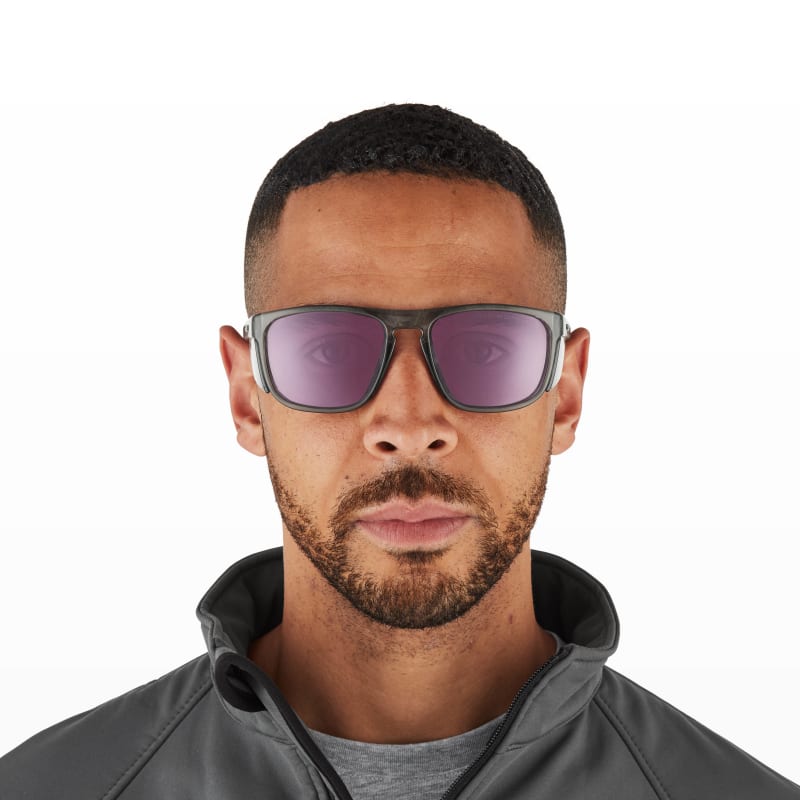

HD	RLY00603	2-2 1 FT CE Z87+ U6 S I	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067	Impacts UV Radiation Solar Radiation	Moisture Repellent Tecton 400 UV400

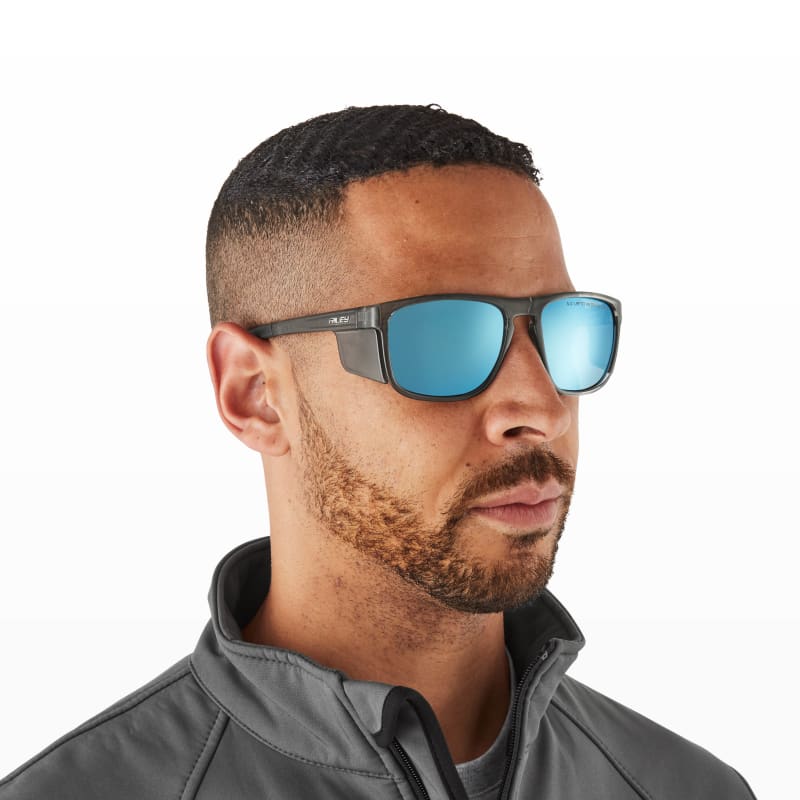

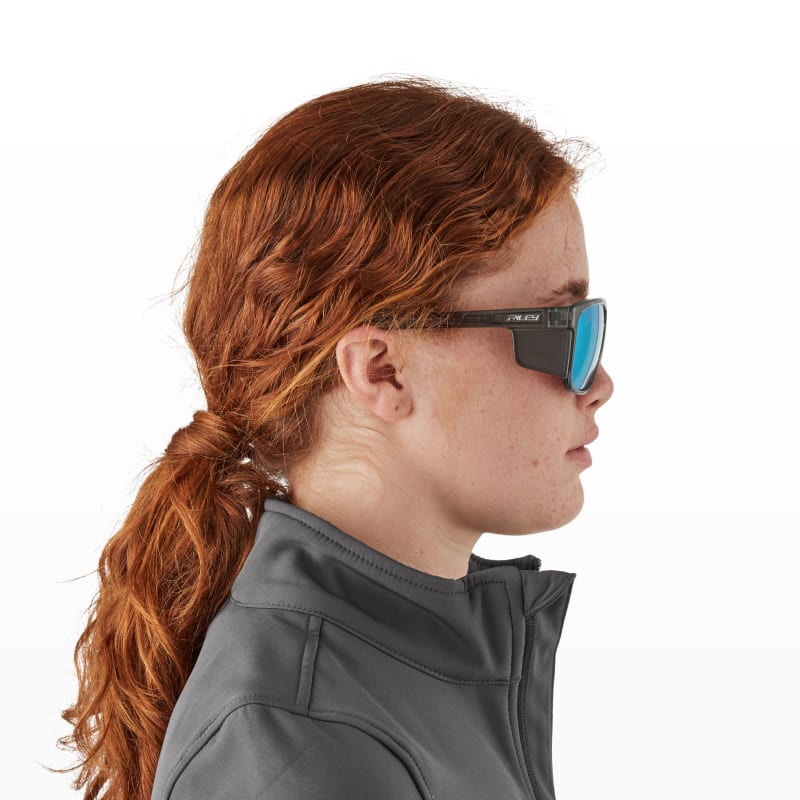

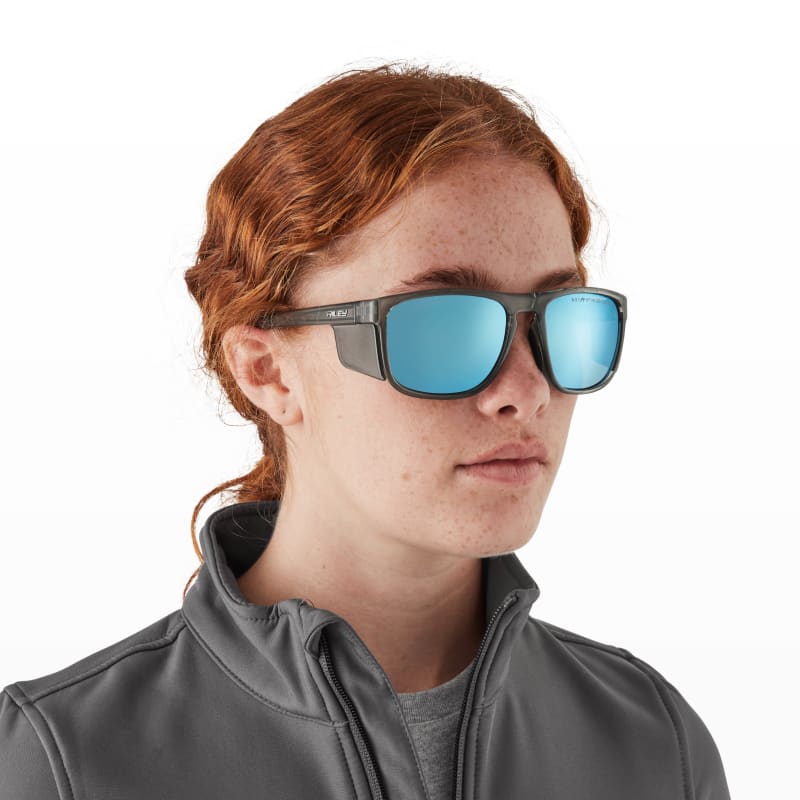

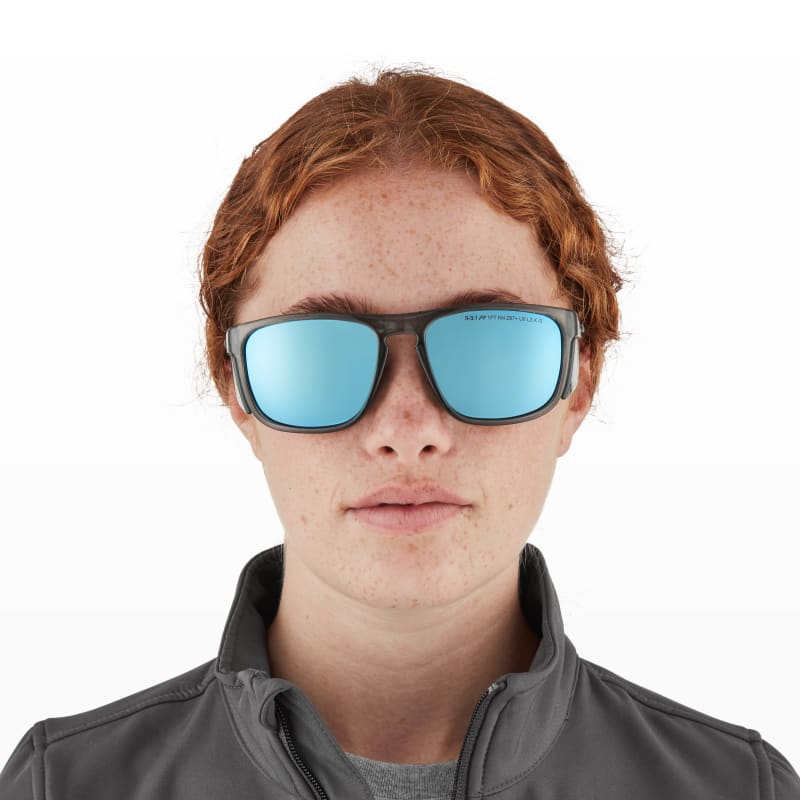

Blue Ice Revo Mirror	RLY00604	5-3.1 1 FT CE Z87+ U6 S	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067	Impacts UV Radiation Solar Radiation	Moisture Repellent Tecton 400 UV400

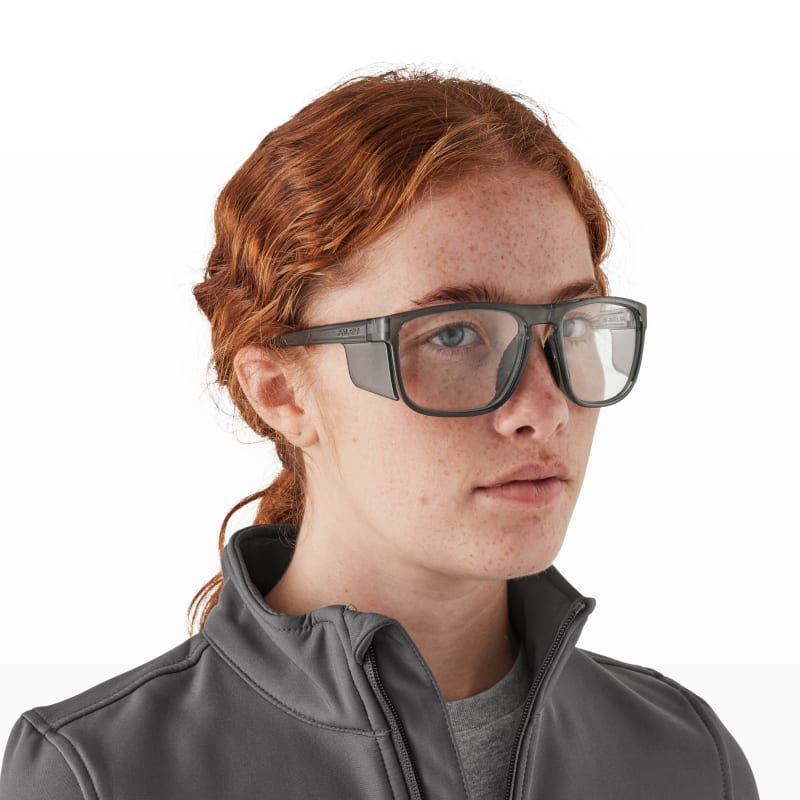

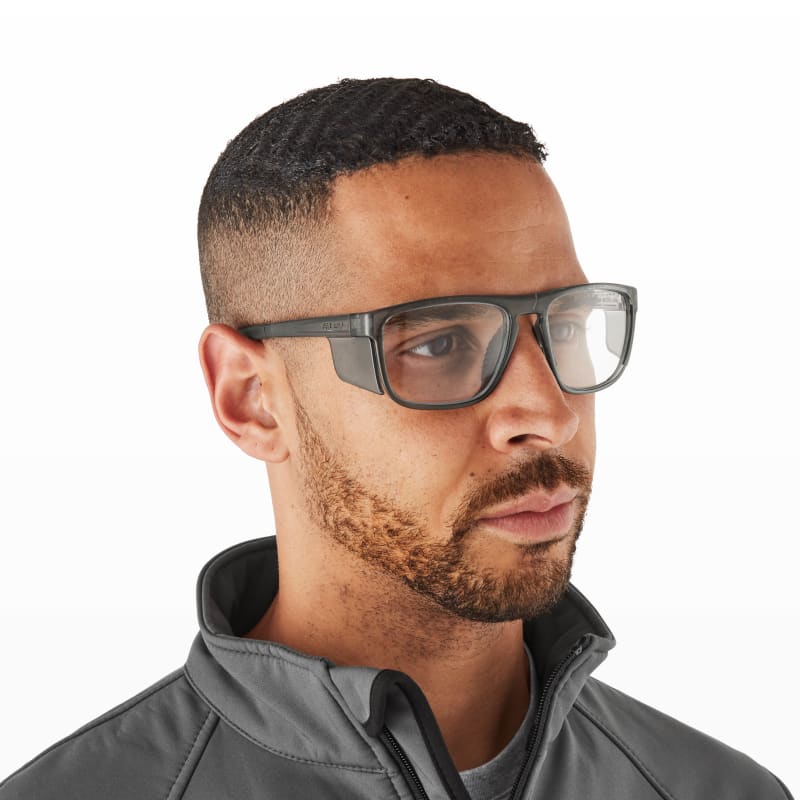

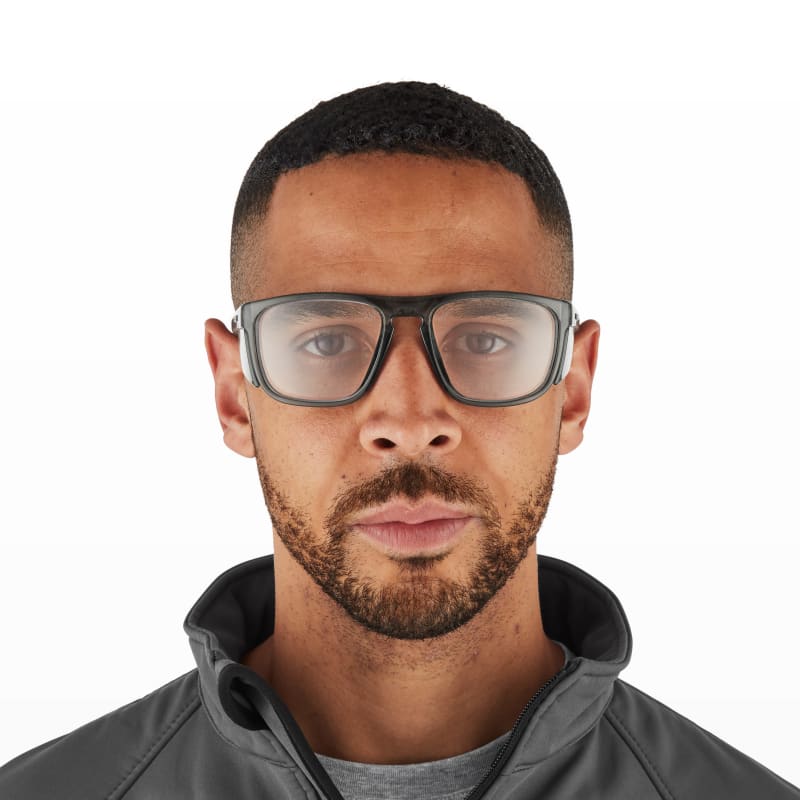

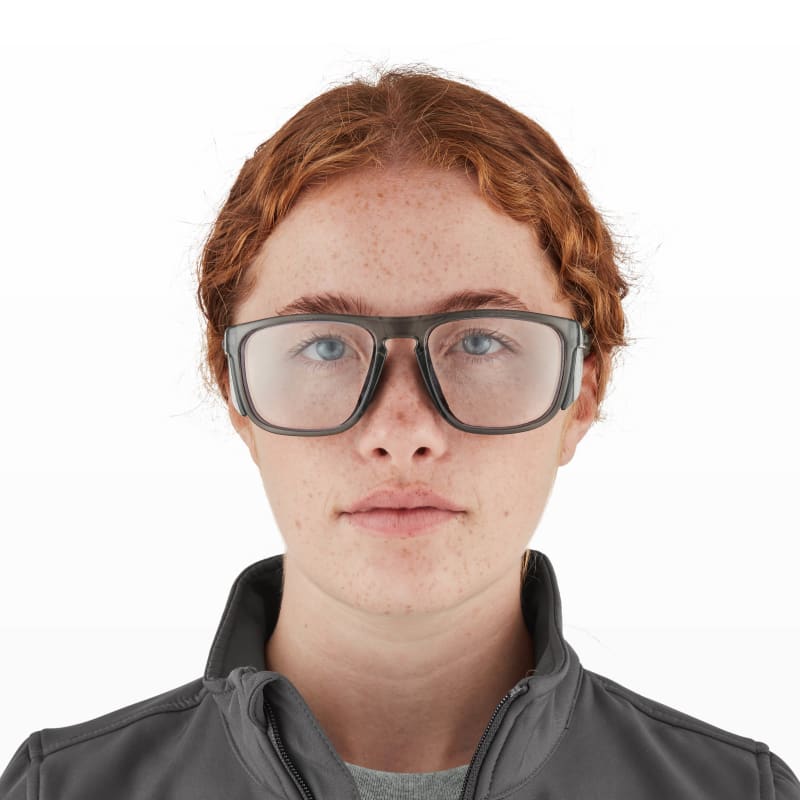

Clear	RLY00606	2C-1.2 1 FT CE Z87+ U6 IO 0	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067	Impacts UV Radiation	Moisture Repellent Tecton 400 UV400

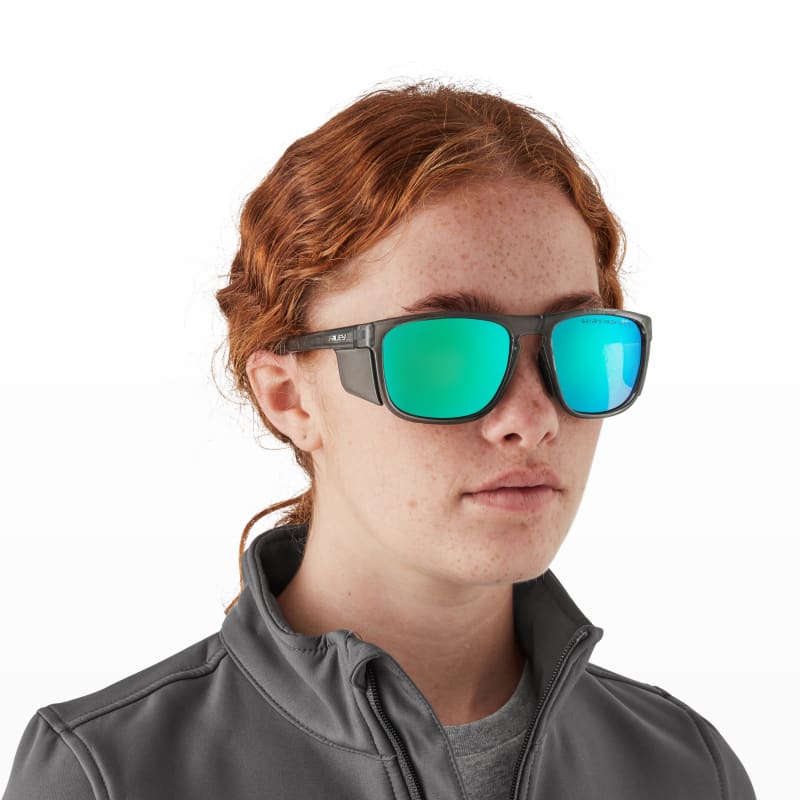

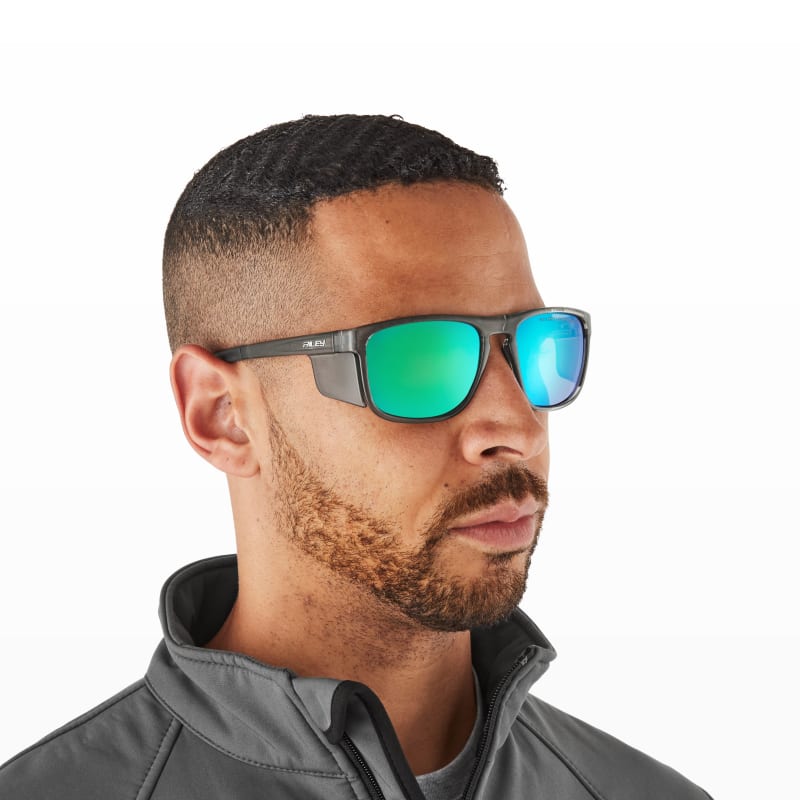

Emerald Revo	RLY00605	5-3.1 1 FT CE Z87+ U6 IO 0	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067	Impacts UV Radiation Solar Radiation	Moisture Repellent Tecton 400 UV400

Product Specifics

Frame Type	Full Frame
Hinge Material	Metal
Nosebridge Material	Thermoplastic Elastomers (TPE)
Series	Navigator
Temple Material	Thermoplastic TR90, Thermoplastic Elastomers (TPE)

Certifications

EN 166	✓
ANSI Z87.1	✓
AS/NZS 1337.1:2010	✓

Options

Selected Option Specifics

SKU	RLY00602
Main Colour	Grey
Secondary Colour	Black
Lens Coating	Moisture Repellent, Tecton 400, UV400
Frame Marking	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067
Lens base	6mm
Lens Marking	5-3.1 1 FT CE / Z87+ U6 L3 S / I 3
Lens Colour	Polarised
Protects Against	Impacts, UV Radiation, Solar Radiation
VLT (Visible Light Transmission)	12%

SKU	RLY00601
Main Colour	Grey
Secondary Colour	Black
Lens Coating	Moisture Repellent, Tecton 400, UV400
Frame Marking	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067
Lens base	6mm
Lens Marking	2C-1.4 1 FT CE / Z87+ U6 L1.3 / I 1
Lens Colour	LED
Protects Against	Impacts, UV Radiation
VLT (Visible Light Transmission)	71%

SKU	RLY00600
Main Colour	Grey
Secondary Colour	Black
Lens Coating	Moisture Repellent, Tecton 400, UV400
Frame Marking	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067
Lens base	6mm
Lens Marking	5-3.1 1 FT CE / Z87+ U6 L3 / I 3
Lens Colour	Grey
Protects Against	Impacts, UV Radiation, Solar Radiation
VLT (Visible Light Transmission)	14%

SKU	RLY00603
Main Colour	Grey
Secondary Colour	Black
Lens Coating	Moisture Repellent, Tecton 400, UV400
Frame Marking	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067
Lens base	6mm
Lens Marking	2-2 1 FT CE / Z87+ U6 S / I
Lens Colour	HD
Protects Against	Impacts, UV Radiation, Solar Radiation
VLT (Visible Light Transmission)	34%

SKU	RLY00604
Main Colour	Grey
Secondary Colour	Black
Lens Coating	Moisture Repellent, Tecton 400, UV400
Frame Marking	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067
Lens base	6mm
Lens Marking	5-3.1 1 FT CE / Z87+ U6 S
Lens Colour	Blue Ice Revo Mirror
Protects Against	Impacts, UV Radiation, Solar Radiation
VLT (Visible Light Transmission)	55%

SKU	RLY00606
Main Colour	Grey
Secondary Colour	Black
Lens Coating	Moisture Repellent, Tecton 400, UV400
Frame Marking	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067
Lens base	6mm
Lens Marking	2C-1.2 1 FT CE / Z87+ U6 / IO 0
Lens Colour	Clear
Protects Against	Impacts, UV Radiation
VLT (Visible Light Transmission)	92%

SKU	RLY00605
Main Colour	Grey
Secondary Colour	Black
Lens Coating	Moisture Repellent, Tecton 400, UV400
Frame Marking	EN166 FT CE Z87+ AS/NZS 1337.1 Lic. SMK41067
Lens base	6mm
Lens Marking	5-3.1 1 FT CE / Z87+ U6 / IO 0

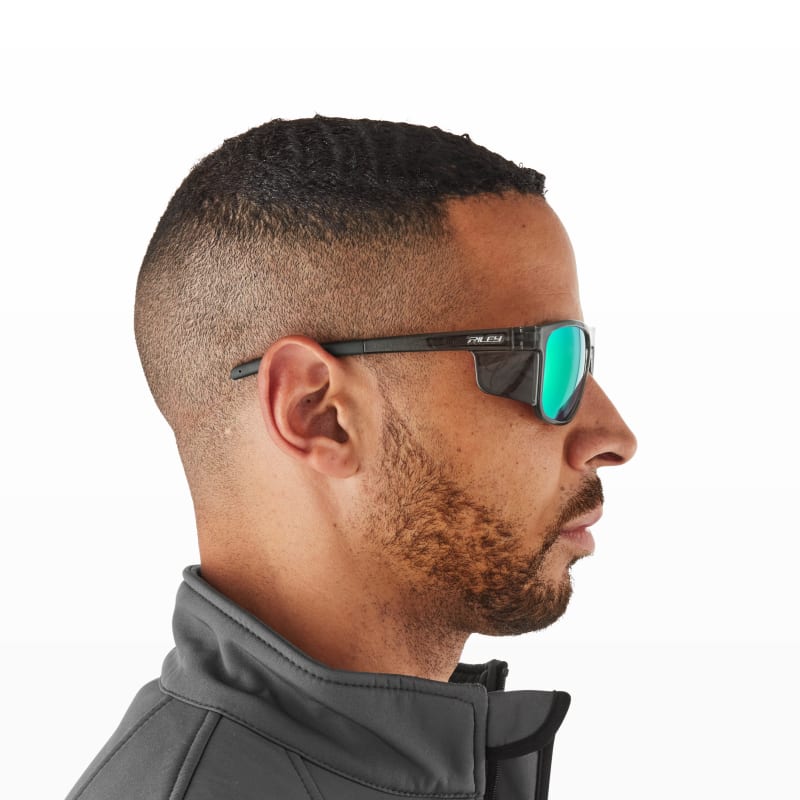

Lens Colour	Emerald Revo
Protects Against	Impacts, UV Radiation, Solar Radiation
VLT (Visible Light Transmission)	10%

Ordering information

Items per Pack	10
Case Quantity	50
Packs Per Case	5

Packaging

Unit Height	50mm
Unit Length	182mm
Unit Width	53mm
Pack height	10.5cm
Pack length	27.5cm
Pack width	16.5cm
Weight	28g
Pack weight	0.74kg
Case height	30cm
Case length	55.5cm
Case width	19cm
Case weight	4.2kg

EN 166:2001

SKU	Lens Colour	Filter	Tint	Optical Class	Mechanical Strength	Frame Mechanical Strength
RLY00602	Polarised	5Solar filter	3.1Dark Grey or Mirror	1For Continuous Work	FLow-energy Impact TExtreme temperatures	FLow-energy Impact TExtreme temperatures
RLY00601	LED	2CUV w/ colour	1.4Blue or I/O Waterproof	1For Continuous Work	FLow-energy Impact TExtreme temperatures	FLow-energy Impact TExtreme temperatures
RLY00600	Grey	5Solar filter	3.1Dark Grey or Mirror	1For Continuous Work	FLow-energy Impact TExtreme temperatures	FLow-energy Impact TExtreme temperatures
RLY00603	HD	2UV	2	1For Continuous Work	FLow-energy Impact TExtreme temperatures	FLow-energy Impact TExtreme temperatures
RLY00604	Blue Ice Revo Mirror	5Solar filter	3.1Dark Grey or Mirror	1For Continuous Work	FLow-energy Impact TExtreme temperatures	FLow-energy Impact TExtreme temperatures
RLY00606	Clear	2CUV w/ colour	1.2Clear or Amber	1For Continuous Work	FLow-energy Impact TExtreme temperatures	FLow-energy Impact TExtreme temperatures
RLY00605	Emerald Revo	5Solar filter	3.1Dark Grey or Mirror	1For Continuous Work	FLow-energy Impact TExtreme temperatures	FLow-energy Impact TExtreme temperatures

ANSI/ISEA Z87.1

SKU	Lens Colour	Impact Rating	UV Light Rating	Additional Markings
RLY00602	Polarised	Z87+High Velocity Impact	U6	SSpecial Tint Lens
RLY00601	LED	Z87+High Velocity Impact	U6
RLY00600	Grey	Z87+High Velocity Impact	U6
RLY00603	HD	Z87+High Velocity Impact	U6	SSpecial Tint Lens
RLY00604	Blue Ice Revo Mirror	Z87+High Velocity Impact	U6	SSpecial Tint Lens
RLY00606	Clear	Z87+High Velocity Impact	U6
RLY00605	Emerald Revo	Z87+High Velocity Impact	U6
